Unlocking Peak Performance: A Deep Dive into the ABB UNITROL 1010 (3BHE035301R0004)

In the demanding world of power generation, stability, reliability, and precision are paramount. For plant operators, engineers, and system integrators, ensuring the consistent performance of synchronous generators is a critical task. This is where the ABB UNITROL 1010 Automatic Voltage Regulator (AVR), specifically the 3BHE035301R0004 model, establishes itself as an industry-leading solution.

This blog post will explore the features, benefits, and applications of this compact yet powerful AVR, providing a comprehensive overview for our clients and partners across North America and Europe.

At a Glance: Why Choose the UNITROL 1010?

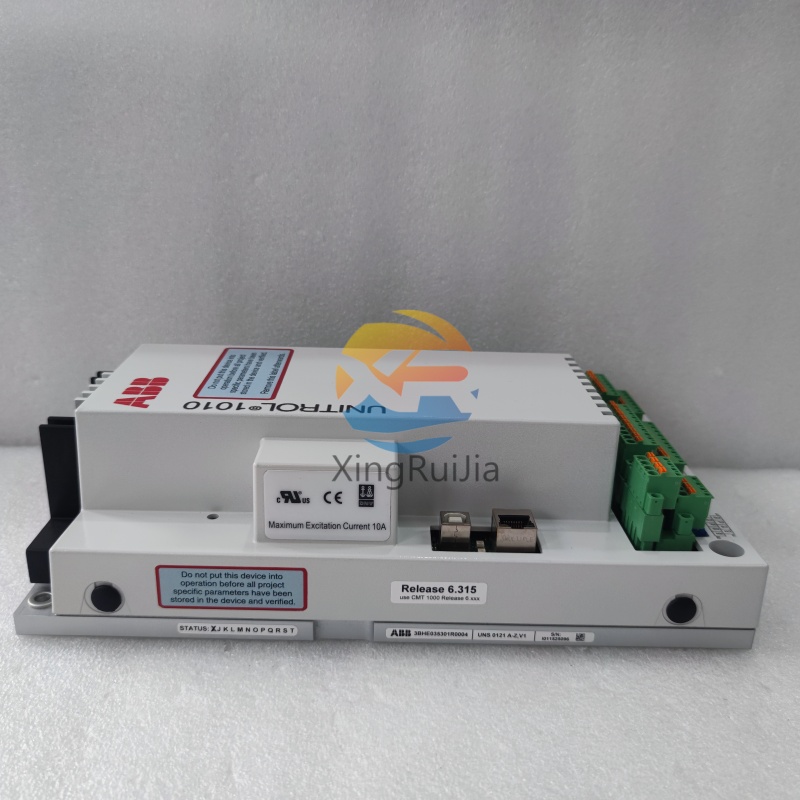

The ABB UNITROL 1010 is an advanced microprocessor-based voltage regulator designed for small to medium-sized synchronous generators and industrial machines. It combines robust hardware with sophisticated software to deliver precise voltage and reactive power control, ensuring your operations run smoothly and efficiently.

Key Features Include:

Compact and Robust Design: Ideal for new installations and retrofits where space is a premium. Its rugged construction ensures reliable operation even in harsh industrial environments with significant vibrations and wide temperature ranges.
Advanced Digital Control: At its core, the UNITROL 1010 utilizes advanced microprocessor technology and IGBT semiconductors. This allows for rapid response to load changes, ensuring stable voltage regulation and enhanced generator performance.
Flexible Communication: Seamless integration into modern control systems is made easy with a variety of communication protocols, including Ethernet (Modbus TCP) and USB. This facilitates straightforward commissioning, monitoring, and data logging.
Built-in Protection: The device features a suite of integrated protection functions, such as over- and under-voltage protection and over-excitation limiting, safeguarding your valuable generator assets.
User-Friendly Interface: The UNITROL 1010 is designed for ease of use, from installation to commissioning and operation. The intuitive local control panel and the powerful CMT1000 commissioning and maintenance tool simplify configuration and troubleshooting.

Technical Specifications: Precision Engineered

For our technically-minded customers, here is a breakdown of the key specifications for the ABB UNITROL 1010 (3BHE035301R0004):

Specification	Value

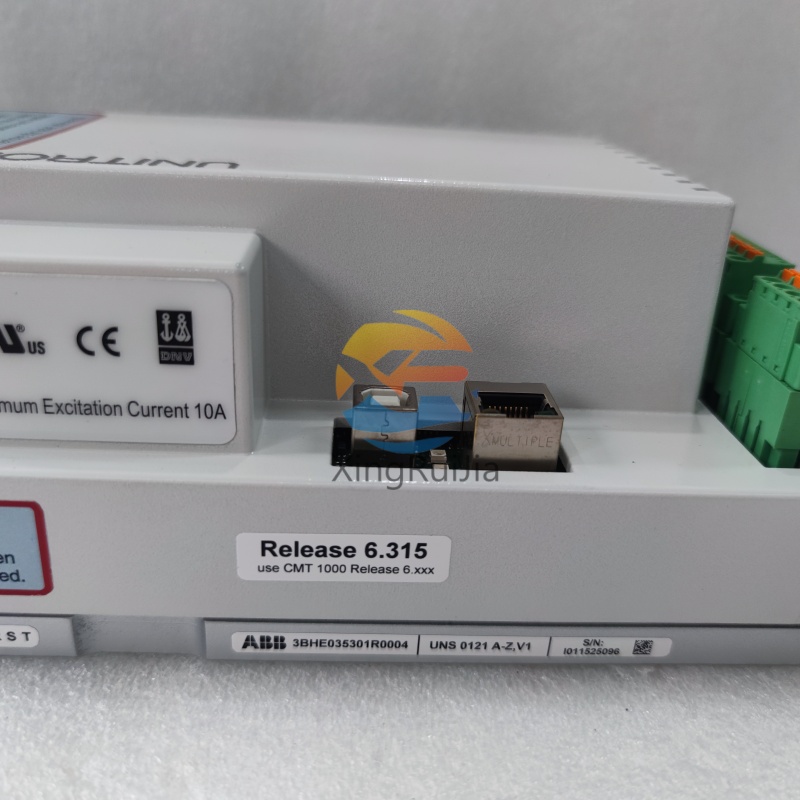

Part Number	3BHE035301R0004
Excitation Current	Up to 10 A nominal continuous output
Voltage Regulation Accuracy	< 0.25% at rated conditions
Power Input Voltage	Wide range for both AC and DC input
Measurement Inputs	1, 2, or 3-phase machine voltage
Communication Ports	Ethernet, USB
Operating Temperature	-20°C to +70°C
Control Modes	Automatic Voltage Regulation (AVR), Power Factor (PF), Reactive Power (VAR)

Diverse Applications: Powering a World of Industries

The versatility of the ABB UNITROL 1010 makes it an ideal choice for a wide array of applications, including:

Power Generation: A perfect fit for diesel, gas, steam, and hydro power plants, ensuring stable power output to the grid.
Marine & Offshore: With certifications for marine applications, it is a trusted component in ship propulsion systems and onboard power generation.
Industrial Machinery: Provides reliable voltage control for synchronous motors in various industrial processes.
Traction: Its robust design is well-suited for the demanding environment of power generation on traction vehicles.
Renewable Energy: Can be effectively integrated into renewable energy systems to ensure grid stability.

The Bottom Line: Your Benefits with the UNITROL 1010

Investing in the ABB UNITROL 1010 translates to tangible benefits for your operations:

Enhanced Reliability: The proven design and high-quality components minimize the risk of downtime, ensuring your systems remain operational.
Improved Efficiency: Precise voltage control allows your generators to operate at optimal performance levels, leading to better fuel efficiency and reduced operational costs.
Increased Asset Lifespan: The integrated protection features safeguard your generators from potentially damaging conditions, extending their service life.
Simplified Integration and Maintenance: Modern communication interfaces and user-friendly software reduce commissioning time and simplify troubleshooting.
Grid Code Compliance: The UNITROL 1010 is designed to meet the demanding requirements of various international grid codes.

Ready to Optimize Your Power Generation?

The ABB UNITROL 1010 (3BHE035301R0004) offers a powerful, reliable, and user-friendly solution for your voltage regulation needs. Its advanced features and versatile applications make it a sound investment for any organization focused on efficient and stable power generation.

Contact us today to request a quote or to speak with one of our technical specialists to learn how the UNITROL 1010 can be integrated into your operations.
