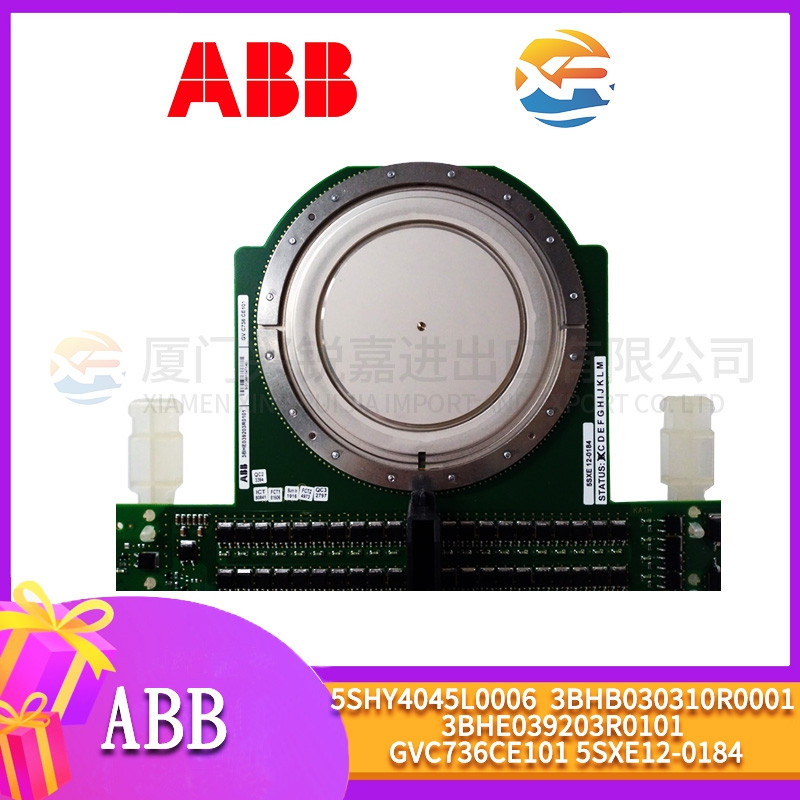

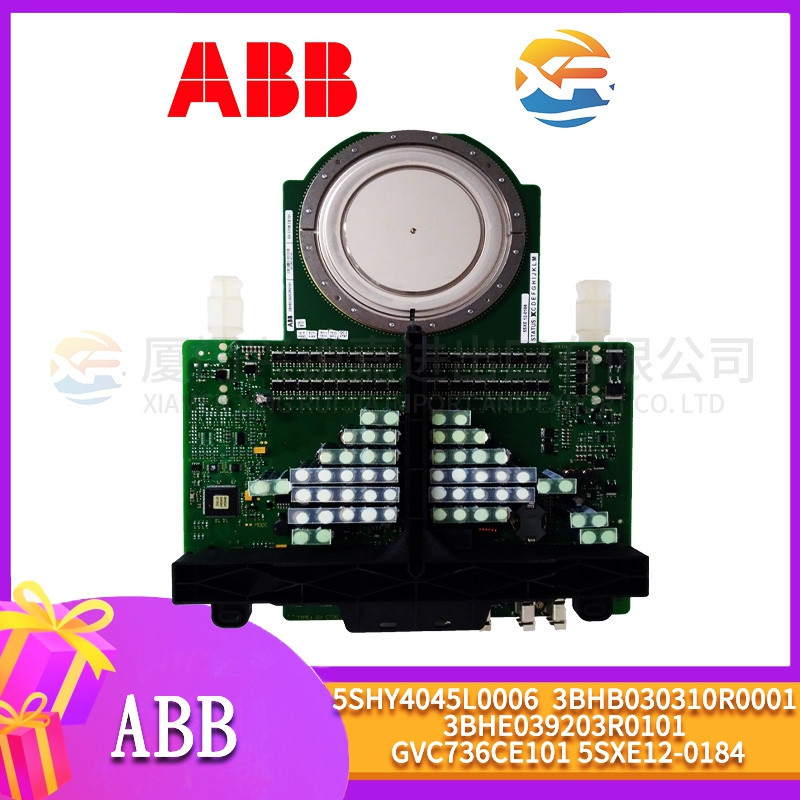

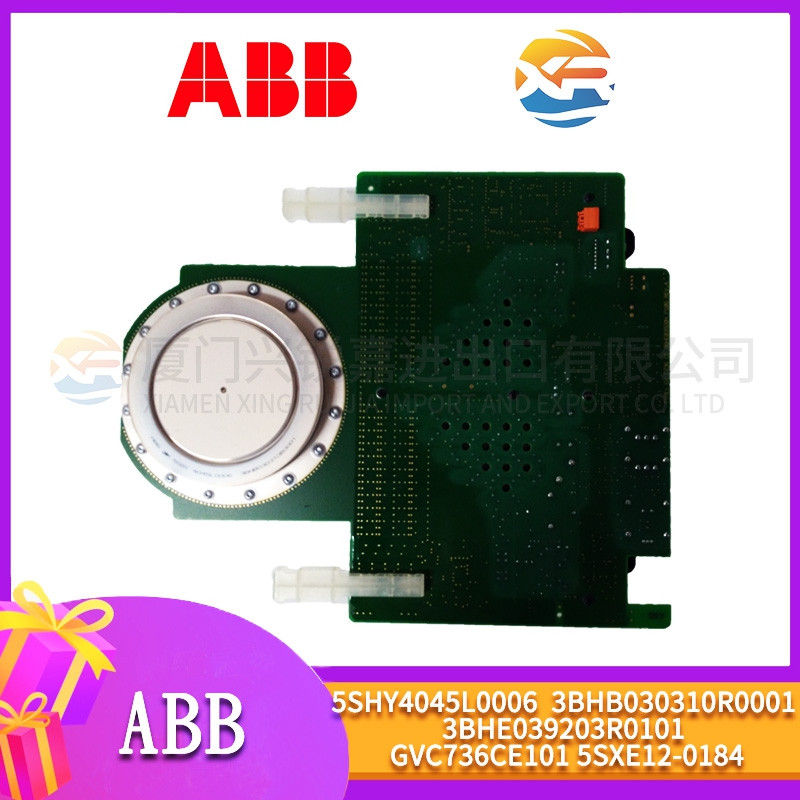

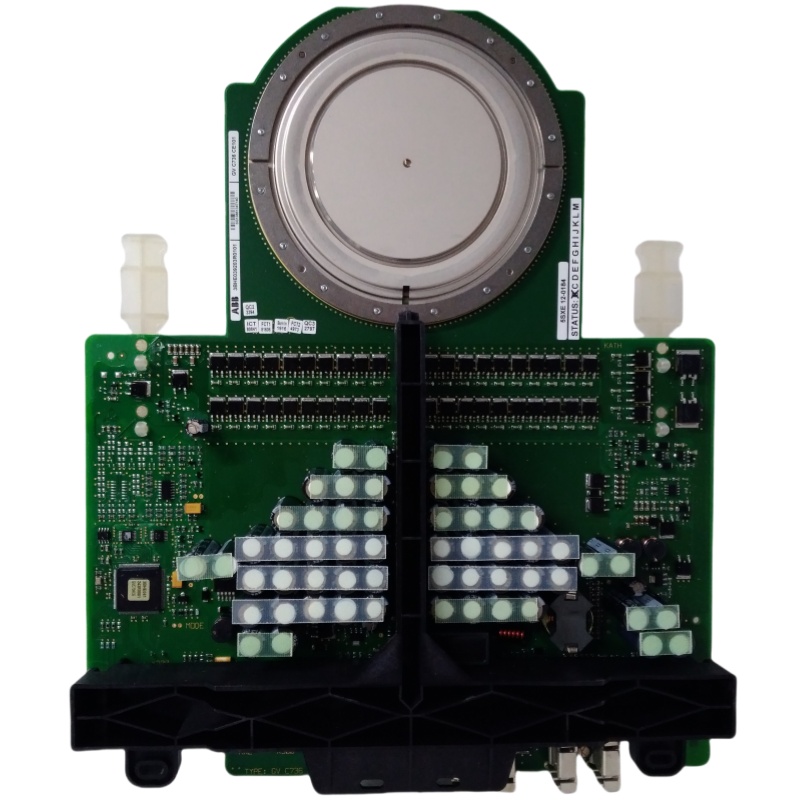

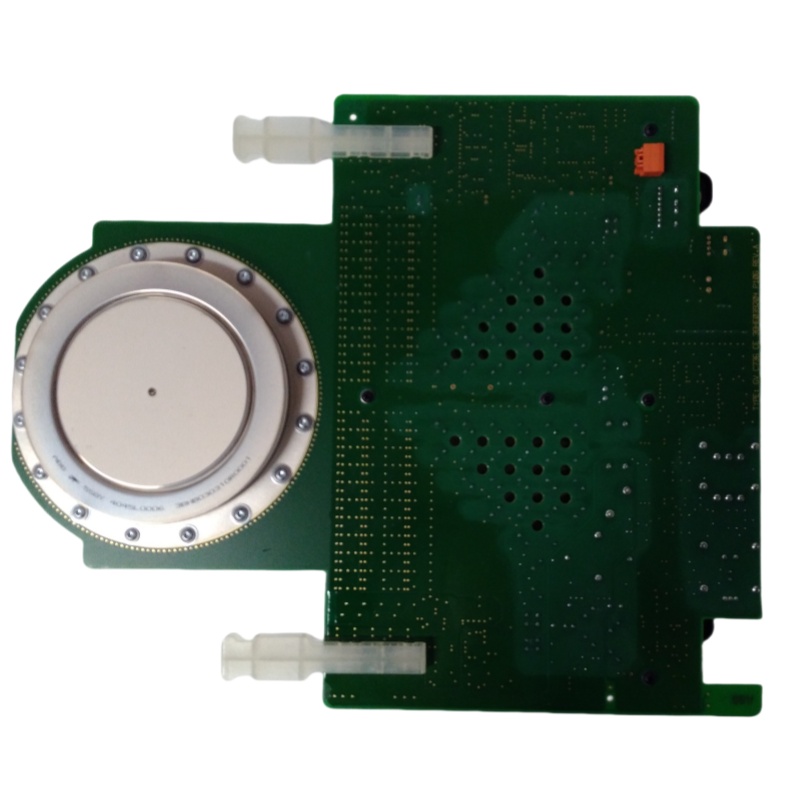

ABB 3BHB030310R0001 / 5SHY4045L0006: High-Performance IGCT Module for Demanding Applications

The ABB 3BHB030310R0001 (often identified with its core component, the ABB 5SHY4045L0006 IGCT module) is a state-of-the-art Integrated Gate Commutated Thyristor (IGCT) module designed for the most demanding high-voltage and high-current industrial power electronics applications. This single, robust unit combines the advanced features of a thyristor with the fast switching capabilities of a gate turn-off device, making it a critical component for achieving high efficiency, reliability, and power density in modern power conversion systems.

Unlocking Performance with the ABB 3BHB030310R0001 / 5SHY4045L0006 IGCT Module

The integration of the gate drive circuit with the IGCT within the 3BHB030310R0001 module significantly reduces parasitic inductance and optimizes switching performance. This makes it an ideal choice for applications where both high power handling and fast switching frequencies are essential.

Key advantages of this ABB IGCT module include:

• Superior Efficiency: Designed for low conduction and switching losses, maximizing energy conversion efficiency and reducing operational costs in high-power systems.

• High Reliability & Robustness: Built with transparent anode technology and optimized packaging, ensuring excellent thermal performance and long-term stable operation even in harsh industrial environments.

• Fast Switching Capabilities: The integrated hard-drive technology and optimized anti-parallel diode enable rapid switching, supporting high-frequency applications crucial for advanced power control.

• Integrated Protection & Monitoring: Features built-in overvoltage and overcurrent protection, along with internal temperature monitoring, to enhance equipment safety and prevent thermal damage.

• Seamless Integration: Compatible with optical fiber drive signals for high-voltage isolation and improved noise immunity, supporting standard industrial communication protocols for easy system integration.

• Compact & Modular Design: The integrated and optimized packaging (often around 91mm in size for the core component) allows for space-efficient designs in power converters and other equipment.

Detailed Technical Parameters of ABB 3BHB030310R0001 / 5SHY4045L0006

Understanding the precise specifications is crucial for successful integration and optimal performance. Here are the key parameters for the ABB 3BHB030310R0001 (which integrates the 5SHY4045L0006 IGCT):

• Part Numbers: 3BHB030310R0001 (ABB's complete module part number) / 5SHY4045L0006 (core IGCT component designation)

• Product Type: Integrated Gate Commutated Thyristor (IGCT) Module

• Rated Voltage: 4500 V (4.5 kV) – Indicating its suitability for high-voltage applications.

• Rated Current: Typically around 91 A (This refers to the gate unit's current handling or a specific aspect of the IGCT; it's essential to consult the full datasheet for the main current ratings for the device itself, which will be much higher). For the main current carrying capacity of the IGCT (ITAV or ITCM), users should consult the official ABB datasheet for the 5SHY4045L0006 as this parameter is critical for sizing.

• Package Type/Dimensions: Often referred to as "91mm" due to the diameter of the IGCT wafer, indicating a compact, high-power density design. (Specific module dimensions will be available on the datasheet, typically around 25 cm x 12 cm x 10 cm for the entire assembly).

• Weight: Approximately 3 kg for the module.

• Integrated Components:

  • IGCT (Insulated Gate Commutated Thyristor)

  • Integrated Gate Drive Circuit

  • Anti-parallel Diode (optimizes switching performance)

  • Integrated Temperature Monitoring

• Switching Technology: Hard-drive technology for fast switching speed and minimized switching losses.

• Insulation: Optical fiber drive signals for high-voltage isolation and enhanced interference immunity.

• Protection Features: Built-in overvoltage and overcurrent protection.

• Typical Applications: High-voltage industrial power electronics.

Common Applications of the ABB 3BHB030310R0001 / 5SHY4045L0006

The robust capabilities of this IGCT module make it indispensable in various high-power industrial and grid applications:

• High-Power Inverters: Used in large motor drives, industrial furnaces, and other applications requiring precise and efficient AC-to-DC or DC-to-AC conversion.

• High-Voltage Direct Current (HVDC) Transmission: A key component in HVDC converter stations for efficient long-distance power transmission.

• Flexible Alternating Current Transmission Systems (FACTS): Enabling dynamic control of power flow and voltage in AC grids, improving stability and capacity.

• Grid Reactive Power Compensation (SVG/STATCOM): Used in Static Var Generators (SVG) or Static Synchronous Compensators (STATCOM) to improve power quality and stability in electrical networks.

• Active Power Filters (APF): Compensating for harmonics and reactive power in industrial systems, ensuring clean power supply.

• Renewable Energy Integration: Found in high-power converters for large-scale wind turbine generators and solar farms connecting to the grid.

• Medium Voltage Drives: Critical for controlling large industrial motors in industries like mining, metals, and pulp & paper.

When searching for reliable, high-performance power semiconductor solutions, the ABB 3BHB030310R0001 / 5SHY4045L0006 IGCT module stands out as a proven choice for engineers and system integrators worldwide.
