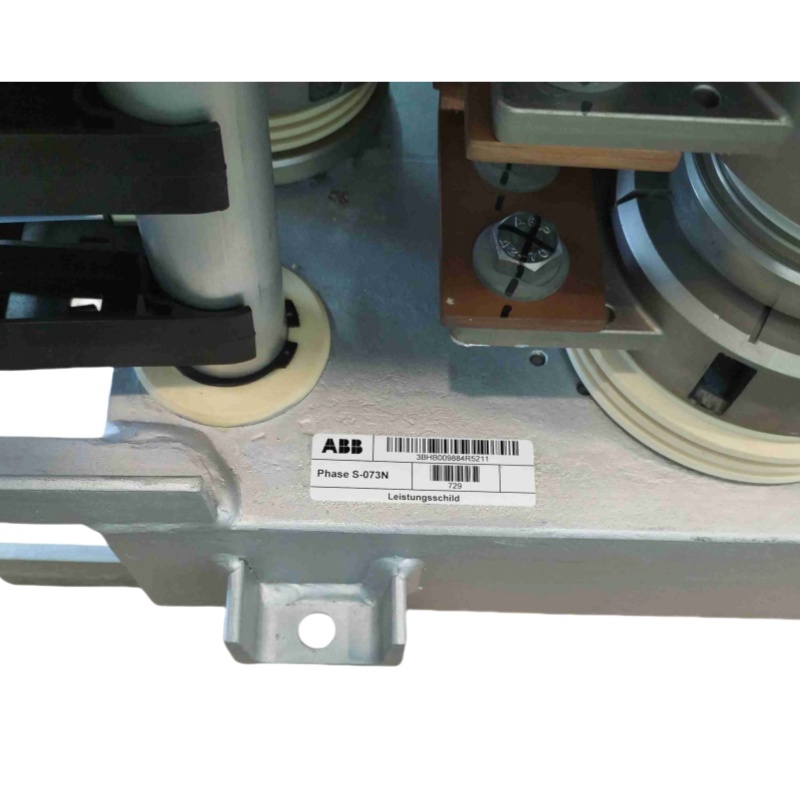

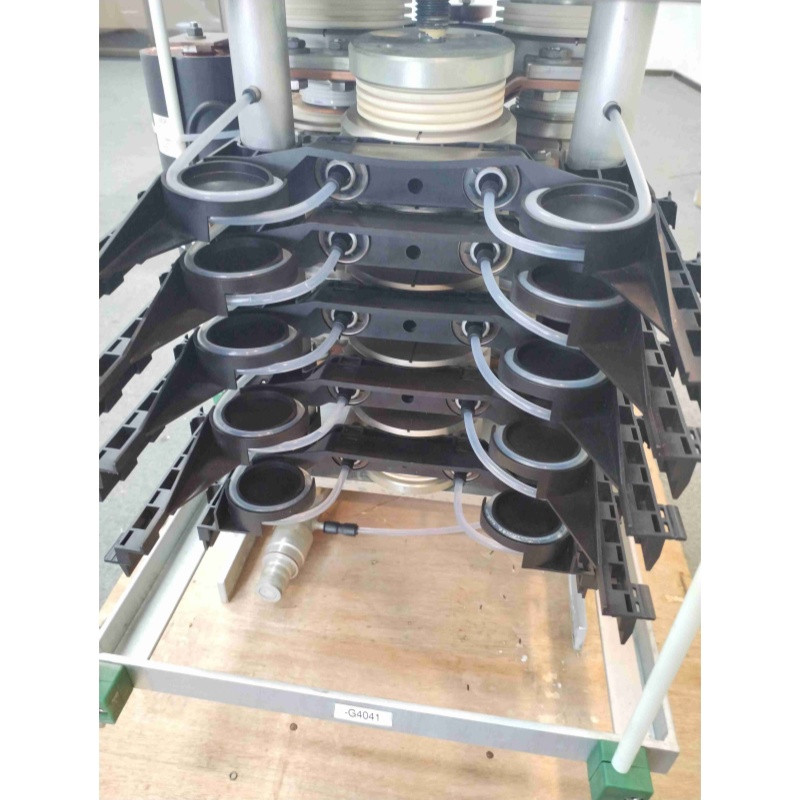

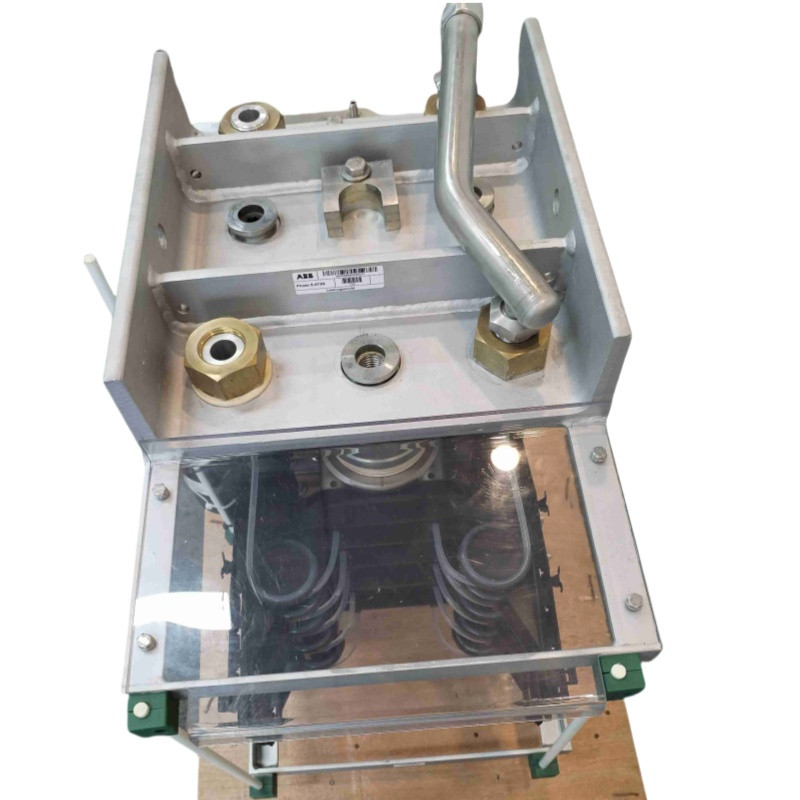

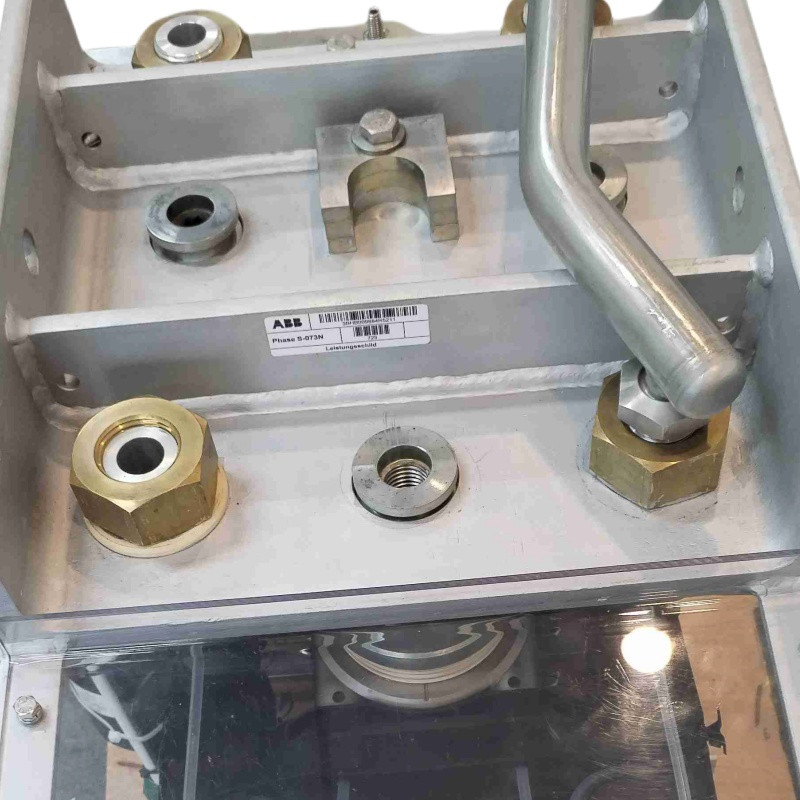

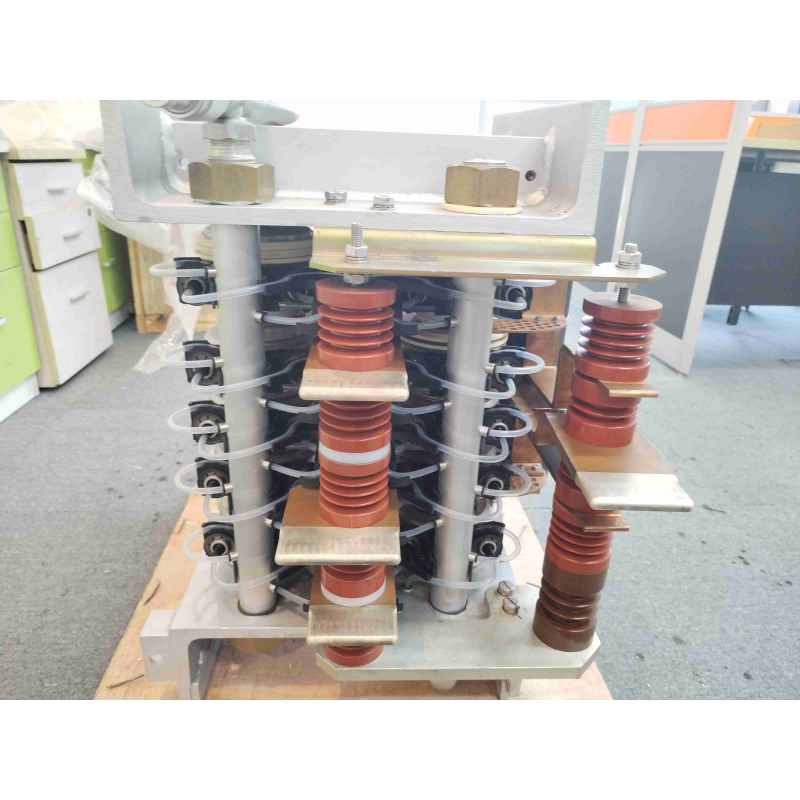

ABB S-073N 3BHB009884R0021: High-Performance Thyristor for Robust Power Applications

The ABB S-073N 3BHB009884R0021 is a high-power thyristor (also known as a silicon-controlled rectifier or SCR) engineered for reliable and efficient performance in demanding industrial and power electronics applications. This specific ABB part number signifies a component designed to handle significant voltage and current, making it crucial for power conversion systems, motor control, and industrial heating processes. As part of ABB's robust semiconductor portfolio, the S-073N 3BHB009884R0021 embodies the company's commitment to quality and durability in power management.

Key Features of the ABB S-073N 3BHB009884R0021 Thyristor

The design of the ABB S-073N 3BHB009884R0021 focuses on delivering stable and efficient power control, even in challenging operational environments. Its core features include:

• High Voltage Blocking Capability: Designed to withstand significant reverse and forward blocking voltages, ensuring reliability in high-voltage circuits.

• High Current Handling Capacity: Capable of conducting substantial current loads, making it suitable for high-power applications where efficient current flow is critical.

• Robust Surge Current Capability: Engineered to withstand high surge currents, providing a margin of safety during abnormal operating conditions or transient events.

• Excellent Thermal Performance: Built with optimized packaging to efficiently dissipate heat, which is crucial for extending the lifespan and ensuring stable operation of the device under continuous load.

• Reliable Switching Performance: Provides consistent and predictable turn-on characteristics, essential for precise control in phase-controlled applications.

• Industrial Grade Durability: Manufactured to meet rigorous industrial standards, ensuring long-term performance and reliability in harsh conditions.

Detailed Product Parameters (Estimated - Please Refer to Official ABB Datasheet for Exact Values)

While specific parameters can vary, a high-power thyristor like the ABB S-073N 3BHB009884R0021 would typically feature specifications along these lines:

• Part Number: 3BHB009884R0021 (ABB's complete assembly/module identifier)

• Device Type: Thyristor (Silicon Controlled Rectifier - SCR)

• Voltage Class / Repetitive Peak Reverse Voltage (VRRM): Often in the range of 1600V to 2200V, indicating the maximum voltage it can block in reverse.

• Repetitive Peak Off-State Voltage (VDRM): Similar to VRRM, indicating the maximum voltage it can block in the forward direction when not triggered.

• On-State Current (ITAV): Average on-state current, typically ranging from 700A to 1200A, signifying its continuous current handling capability.

• Surge On-State Current (ITSM): Non-repetitive peak surge current, which could be in the range of 10kA to 20kA, indicating its tolerance to momentary overloads.

• Gate Trigger Current (IGT): The minimum current required to trigger the thyristor into conduction, typically in milliamperes.

• Gate Trigger Voltage (VGT): The minimum voltage required at the gate to trigger the thyristor, typically in volts.

• Package Type: Often disc-type or capsule-type for high-power applications, designed for clamping into heat sinks.

• Thermal Resistance (RthJC): Junction-to-case thermal resistance, a critical parameter for thermal management, indicating how efficiently heat is transferred away from the device.

• Operating Temperature Range (Tj): Typical junction temperature range for reliable operation, often from -40°C to +125°C.

Note: For precise and application-specific values, always consult the official ABB datasheet corresponding to the 3BHB009884R0021 part number.

Applications of the ABB S-073N 3BHB009884R0021 Thyristor

The robust nature and high power handling capabilities of the ABB S-073N 3BHB009884R0021 make it suitable for a wide array of industrial power control and conversion systems:

• DC Power Supplies: Used in large rectifiers for industrial DC power applications.

• Motor Control: Essential components in soft starters and DC motor drives for controlling the speed and torque of large industrial motors.

• Industrial Heating: Employed in resistance heating, induction heating, and electric arc furnace control systems.

• Electrochemical Processes: Critical for power regulation in processes like aluminum smelting and chlor-alkali production.

• Uninterruptible Power Supplies (UPS): Used in high-power UPS systems to ensure continuous power supply to critical loads.

• Battery Chargers: Integrated into large-scale battery charging systems for industrial vehicles or energy storage.

• Voltage Regulation and Stabilization: Applied in power factor correction and static var compensators to improve grid stability and power quality.

By choosing the ABB S-073N 3BHB009884R0021 thyristor, you're opting for a proven component that delivers the reliability and performance necessary for sophisticated power electronics applications across diverse industrial sectors.
