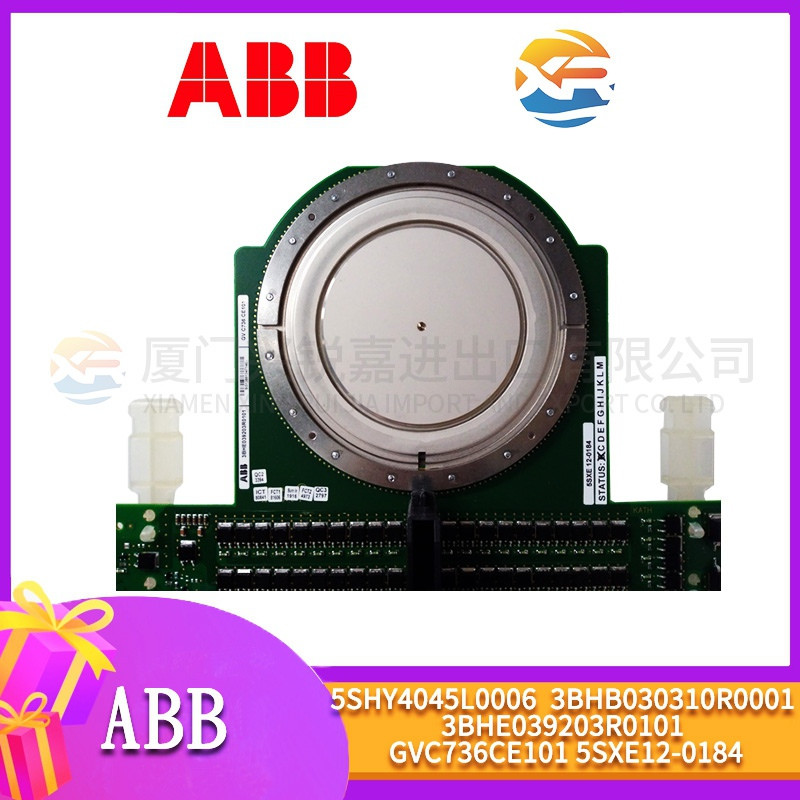

ABB 5SHY4045L0006 / 3BHB030310R0001 / 3BHE039203R0101 GVC736CE101: Advanced IGCT Module with Integrated Gate Unit for Power Electronics

The ABB 5SHY4045L0006 is a high-performance Integrated Gate Commutated Thyristor (IGCT) module, frequently supplied as part of larger assemblies like the ABB 3BHB030310R0001 and controlled by sophisticated gate units such as the 3BHE039203R0101 GVC736CE101. This powerful combination forms a cornerstone for advanced power conversion solutions in demanding industrial and utility applications. Together, these components deliver unparalleled efficiency, reliability, and precise control for high-voltage, high-current systems, ensuring robust performance in the most critical power electronics environments.

Unlocking High Performance with ABB's Integrated IGCT Solution

At the heart of this system is the 5SHY4045L0006 IGCT, a cutting-edge power semiconductor device that combines the low conduction losses of a thyristor with the fast turn-off capabilities of a gate turn-off (GTO) device. When paired with its optimized gate unit (like the 3BHE039203R0101 GVC736CE101), the assembly (3BHB030310R0001) offers:

• Exceptional Efficiency: Designed for minimal conduction and switching losses, maximizing energy conversion and reducing operational costs in high-power applications.

• Rapid & Reliable Switching: The integrated hard-drive technology within the gate unit ensures precise and fast turn-on/turn-off, crucial for high-frequency converters and dynamic power control.

• Integrated Protection & Monitoring: The gate unit provides essential protective functions, including overvoltage, overcurrent, and overtemperature monitoring, safeguarding the IGCT and the overall system.

• High Power Density: The compact, optimized design of the IGCT and its integrated gate unit allows for more power to be handled in a smaller footprint, ideal for space-constrained installations.

• Robustness & Longevity: Built with ABB's renowned quality and advanced packaging, ensuring high thermal cycling capability and extended operational life even in harsh industrial conditions.

• Seamless Digital Integration: Gate units like the GVC736CE101 often support optical fiber communication, ensuring high-voltage isolation and immunity to electrical noise, allowing for reliable integration into modern control systems (e.g., via IEC 61850 compatibility).

Detailed Product Parameters & Component Breakdown

Understanding the specific roles of each component within this integrated system is key:

• ABB 5SHY4045L0006 (Core IGCT Device):

  • Device Type: Integrated Gate Commutated Thyristor (IGCT)

  • Rated Voltage (VDRM/VRRM): Typically 4500 V (4.5 kV), indicating its high-voltage blocking capability.

  • Average On-State Current (ITAV): Specific current rating must be confirmed from the official datasheet, but IGCTs of this class handle very high currents, often several hundreds to thousands of amps.

  • Surge Current (ITSM): High surge current withstand capability for fault conditions.

  • Package: Disc-type, optimized for high power and efficient heat dissipation via clamping.

  • Features: Integrated transparent anode technology, optimized for low switching losses.

• ABB 3BHB030310R0001 (IGCT Module/Assembly):

  • Function: This is typically the complete module assembly that houses the 5SHY4045L0006 IGCT along with its integrated anti-parallel diode. It might also include thermal interfaces or specific mounting features for ease of integration into larger power converters.

  • Dimensions/Weight: Specific to the module, designed for robust mounting and thermal management.

• ABB 3BHE039203R0101 GVC736CE101 (IGCT Gate Unit):

  • Function: This is the dedicated electronic control unit that provides the precise gate pulses to turn the 5SHY4045L0006 IGCT on and off. It's critical for achieving the IGCT's fast switching speeds and protecting the device.

  • Key Features:

    • Integrated Hard-Drive: Provides strong gate current for fast switching.

    • Protection Functions: Includes sophisticated protection against overcurrents, overvoltages (e.g., through active clamping), and overtemperature conditions.

    • Optical Fiber Interface: For galvanic isolation and noise-immune signaling to the high-voltage IGCT.

    • Monitoring Capabilities: Often provides diagnostic feedback on device status and fault conditions.

    • Compatibility: Specifically designed to interface with the 5SHY4045L0006 IGCT.

Key Applications of ABB 5SHY4045L0006 & Associated Modules

This powerful ABB IGCT solution is vital in applications demanding the highest levels of power conversion efficiency and reliability:

• High-Voltage Direct Current (HVDC) Transmission: Crucial for efficient long-distance power transmission and grid interconnections.

• Flexible AC Transmission Systems (FACTS): Including Static Synchronous Compensators (STATCOMs) and Static Var Generators (SVGs) for improving grid stability, power quality, and reactive power compensation.

• High-Power Industrial Drives: Used in large medium-voltage drives for applications like mining conveyors, metal rolling mills, large pumps, and fans, where precise motor control and energy efficiency are paramount.

• Renewable Energy Grid Integration: Employed in the power converters of large-scale wind turbines and solar farms for stable and efficient grid connection.

• Active Power Filters (APF): For harmonic mitigation and power quality improvement in industrial networks.

• Traction Systems: In high-power converters for electric locomotives and mass transit systems.
