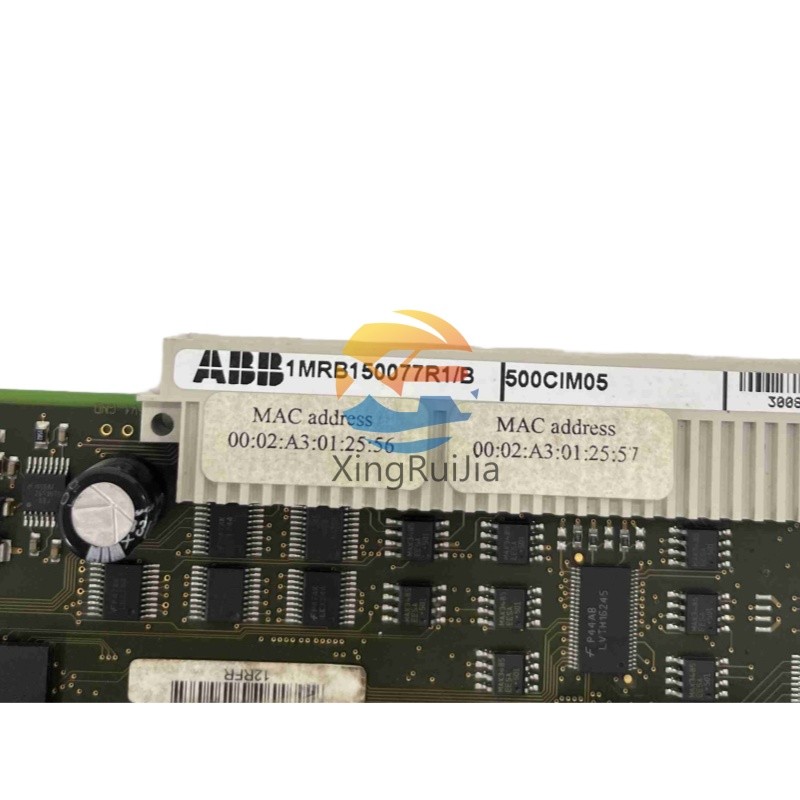

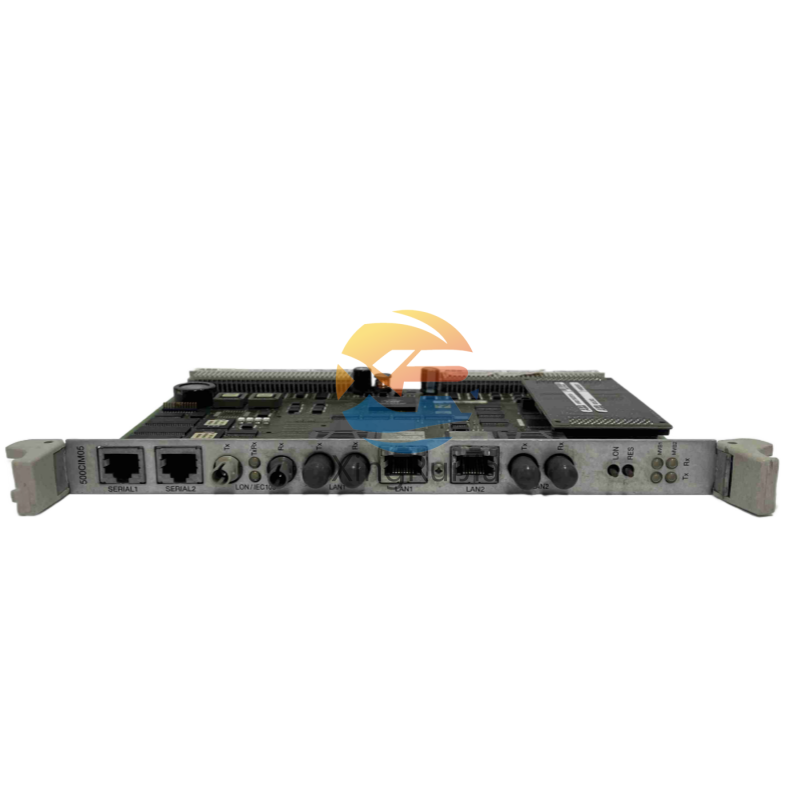

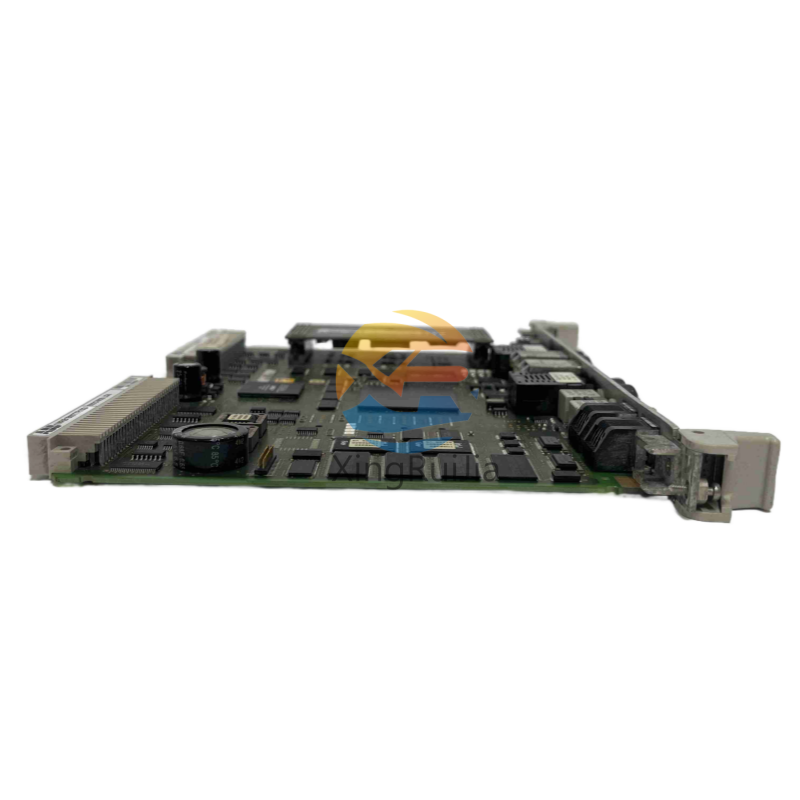

Sweden ABB 500CIM05 Profibus DP Interface Module (1MRB150077R1/B)
The ABB 500CIM05 (P/N: 1MRB150077R1/B) is a high-speed Profibus DP communication module for ABB's S800 I/O platform. This critical interface enables real-time data exchange between field devices and control systems like AC 800M, supporting industrial automation networks with 12Mbps transfer rates.
Dual-Channel Profibus DP: Master/slave operation with EN 50170 certification
Plug-and-Play Integration: Hot-swappable in S800 I/O racks (TB801/TB811)
Diagnostic Intelligence: LED status indicators for network health and module errors
High-Density I/O Support: Connects up to 244 devices per segment
Redundancy Ready: Pair with 500BIO01 module for fail-safe operation
Cyber-Secure: Supports PROFIsafe for SIL 3 applications
| Parameter | Specification |
|---|---|
| Part Number | 1MRB150077R1/B |
| Module Type | Profibus DP Communication Interface |
| Protocol Support | Profibus DP-V0/V1, EN 50170 Standard |
| Data Transfer Rate | 9.6Kbps to 12Mbps (auto-negotiating) |
| Isolation Voltage | 500V AC between field/control sides |
| Power Consumption | 1.2W (typical) at 24V DC |
| Operating Temp. | -25°C to +70°C (-13°F to +158°F) |
| Certifications | CE, UL, cULus, IEC 61131-2 |
| Connector Type | 9-pin D-Sub (RS-485) |
Manufacturing PLC networks
Cement plant motor control
Automotive production lines
Pharmaceutical batch control
Water treatment SCADA systems
