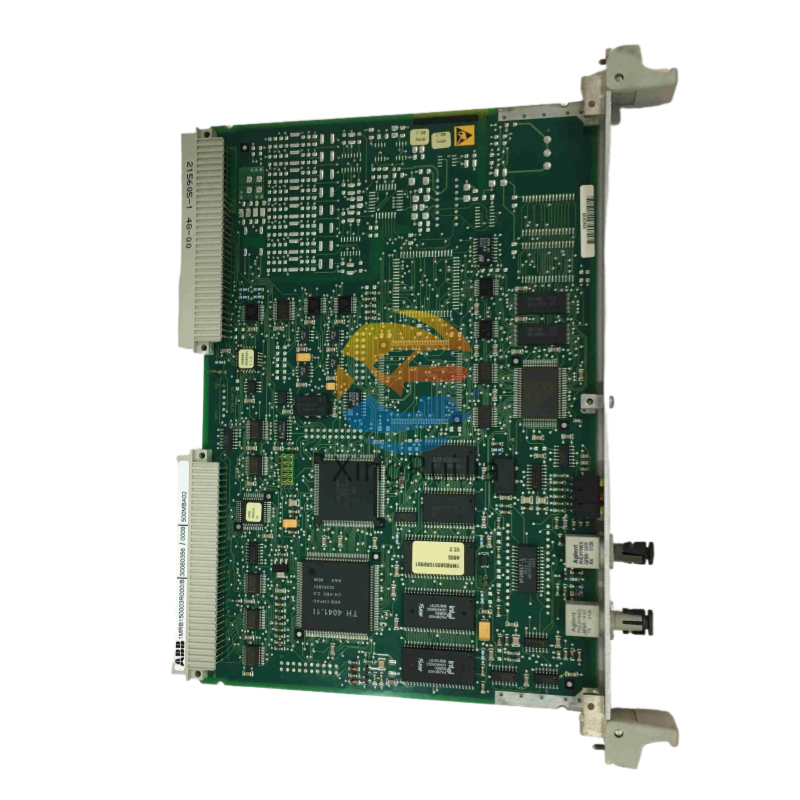

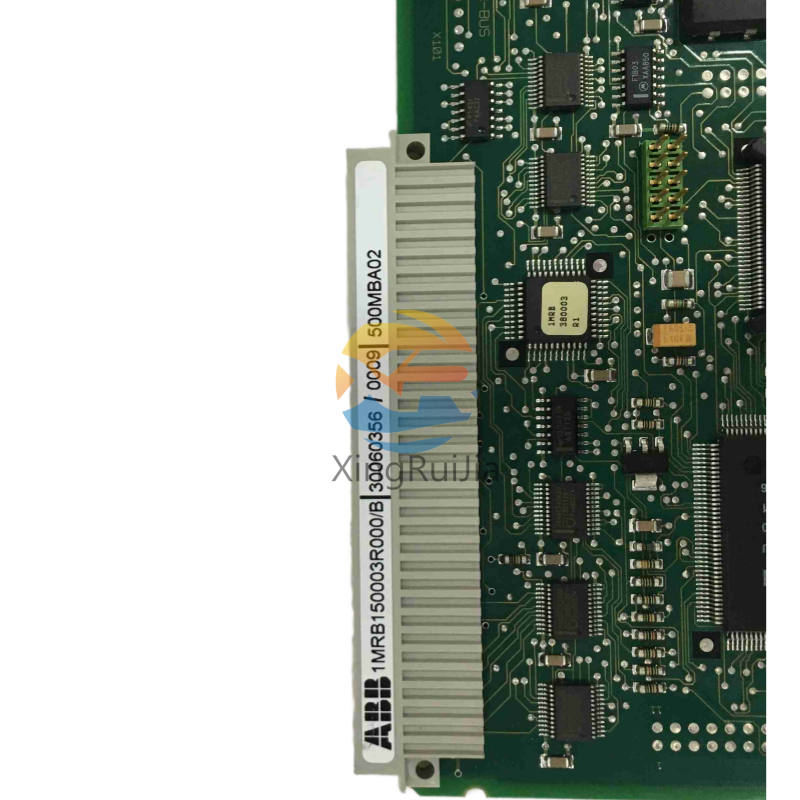

ABB 500MBA02 Master Unit for RTU500 Series

The ABB 500MBA02 is an advanced Master Unit (also known as a Main Module) that forms the processing and communication heart of the ABB RTU500 series. With the specific order code 1MRB150003R0003, this unit is engineered for complex automation tasks, providing superior data processing and versatile connectivity for critical infrastructure in the utility and industrial sectors.

Product Overview

As a central controller within the RTU500 rack, the 500MBA02 is responsible for executing control logic, managing multiple communication protocols, and aggregating data from various I/O modules and intelligent electronic devices (IEDs). It is designed to meet the stringent requirements of modern substation automation, distribution networks, and industrial process control, ensuring high availability, data security, and operational efficiency.

Key Features & Benefits

• High-Performance CPU: Features an upgraded processor designed for faster execution of control logic, complex calculations, and handling large volumes of data, making it suitable for demanding applications.
• Extensive Communication Options: Equipped with multiple Ethernet and serial ports, it facilitates robust communication with SCADA master stations, local HMIs, and field devices.
• Broad Protocol Compatibility: Offers native support for a wide array of industry-standard protocols such as IEC 61850, DNP3, IEC 60870-5-101/104, and Modbus, ensuring seamless integration into new and existing systems.
• Scalable and Flexible: The modular nature of the RTU500 series allows the 500MBA02 to be combined with a diverse range of I/O modules to create a perfectly sized and cost-effective solution.
• Built for Harsh Environments: Engineered to operate reliably in extreme temperatures and high-EMC environments, making it a dependable choice for utility substations and industrial plants.
• Cyber Security Focused: Includes advanced security features like secure authentication, encrypted communication, and logging to help meet NERC CIP and other regulatory requirements.

Technical Specifications

Applications

• Transmission & Distribution Automation: Ideal for controlling and monitoring assets in electrical grids and substations.
• Renewable Energy Integration: Managing and controlling solar farms, wind turbines, and battery energy storage systems (BESS).
• Oil & Gas Sector: Pipeline monitoring, pump station control, and wellhead automation.
• Water & Wastewater Systems: Remote monitoring and control of pumping stations, treatment plants, and distribution networks.
• Transportation Infrastructure: Power control for railway systems and monitoring for tunnels and highways.

Ordering and Availability

For current pricing, lead times, and technical consultation for the ABB 500MBA02 (Part No. 1MRB150003R0003), please reach out to our expert sales team. We are ready to assist you with product selection and system configuration to ensure your project's success.
