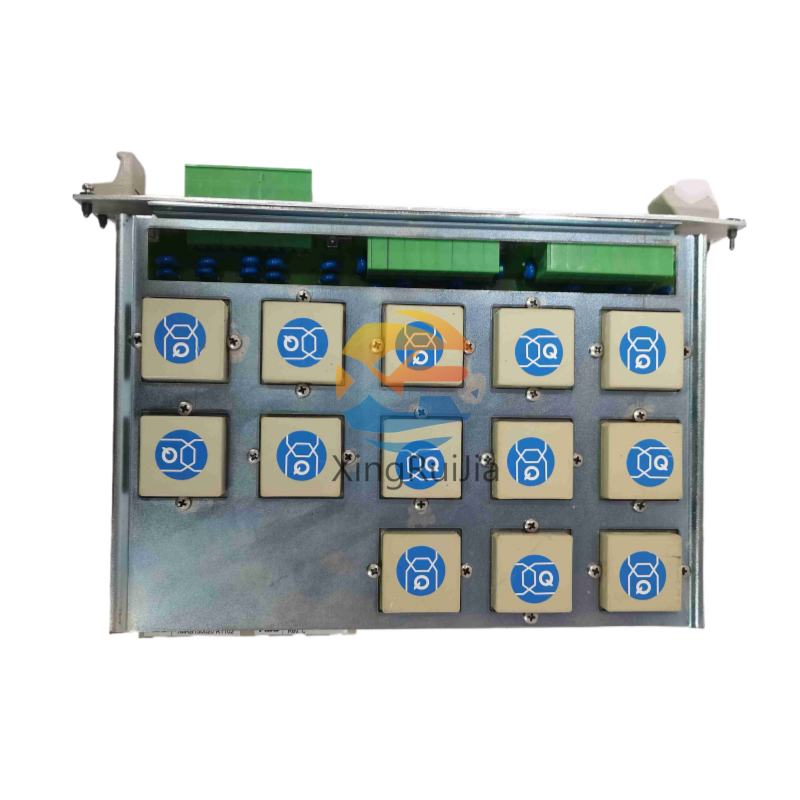

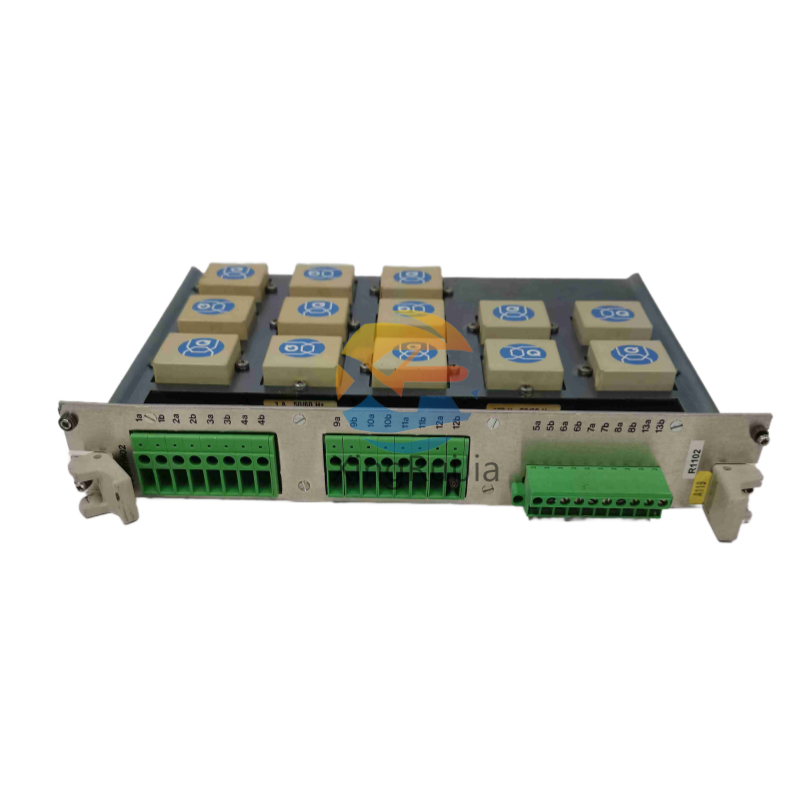

Model：ABB 500MTM02 1MRB150020R0712 1HDF 930512 X010

Brand: ABB
Price range (USD): 1000
Country: Sweden
Parameter: Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：sales5@xrjdcs.com

Product Overview

The Control Module 500MTM02 is a core component of ABB's premier extended automation system, System 800xA. This module is engineered for mission-critical tasks where maximum uptime and fault tolerance are non-negotiable.

Its redundant design ensures continuous operation even in the event of a hardware failure, making it ideal for industries such as oil & gas, power generation, chemicals, and pharmaceuticals.

Key Features and Benefits

High Availability & Redundancy: Hot-swappable and redundant design for zero downtime maintenance and unparalleled system integrity.
Enhanced Processing Power: Handles complex control algorithms and large I/O counts with ease.
Seamless Integration: Fully compatible with all System 800xA nodes and networks, including AF, Control, and Operator Networks.
Advanced Diagnostics: Built-in self-diagnostics and status indicators for proactive maintenance and quick troubleshooting.
Robust and Reliable: Designed and tested for operation in harsh industrial environments.
Future-Proof: Part of the ABB Ability™ platform, enabling digitalization and IIoT connectivity.

Technical Specifications

Parameter	Value / Description
Product Type	Redundant Control Module for AC 800M Controller
Article Number	1MRB150020R0712
Revision Code	1HDF 930512 X010
Compatible Controller	PM864AK, PM864K, PM866AK, PM866K
Memory	512 MB RAM (Application Code)
Redundancy	Yes, fully redundant (1:1)
Communication	Integrated ports for Control Network (CN) and Operator Network (ON)
Operating Temperature	0 to 60 °C (32 to 140 °F)
Relative Humidity	5 - 95% (non-condensing)
Certifications	cULus Listed, ATEX, IECEx, CE, NEPSI

Product Documentation

Find all necessary technical manuals, certificates, and documentation for the 500MTM02 module below.

Instruction Guide - 500MTM02 Installation and Wiring (3BSE050320R0712) (PDF, 1.2 MB)
Data Sheet - 500MTM02 Control Module (3BSE050319R0712) (PDF, 0.8 MB)
System 800xA Hardware Catalog (PDF, 15 MB)
CE Declaration of Conformity (PDF, 0.5 MB)
Safety Instructions for AC 800M (PDF, 1.5 MB)

Typical Applications

The 500MTM02 module is deployed in industries that require the highest level of automation reliability and performance.

Oil & Gas: Upstream production platforms, LNG liquefaction trains, pipeline compressor control, refinery process units (FCC, Crude Distillation).
Power Generation: Combined cycle power plant (CCPP) control, turbine control, balance of plant (BOP) systems.
Chemicals & Petrochemicals: Batch process control, continuous reaction control, safety instrumented systems (SIS).
Pharmaceuticals: Precise batch manufacturing in accordance with strict regulatory requirements (e.g., FDA 21 CFR Part 11).
Pulp & Paper: Distributed control for entire paper machines and stock preparation lines.
