Model：ABB PM864AK01 3BSE018161R1

Brand: ABB
Price range (USD): 1000
Country: Sweden
Parameter: Warranty： 365 days
Quality: Original module
Condition： New / Used
Warehouse: Spot
Delivery time: Shipped in 3 days after payment
Mailbox：sales5@xrjdcs.com

ABB PM864AK01 Process Controller

A high-performance, scalable process controller designed for industrial automation systems, delivering reliable control and seamless integration with ABB's Extended Automation 800xA platform.

1. Product Overview

The ABB PM864AK01 is a key component of ABB's AC 800M Controller family, engineered to meet the demanding control requirements of complex industrial processes. It combines powerful processing capabilities, flexible I/O integration, and robust cybersecurity features to ensure stable, efficient, and secure operation in industries such as oil & gas, power generation, chemicals, and manufacturing.

As a modular controller, it supports distributed control architectures, enabling users to scale their automation systems according to process needs while minimizing downtime and operational costs.

2. Key Technical Specifications

Parameter <	Specification
Processing Unit	32-bit RISC processor, 1.0 GHz clock speed
Memory	- Flash Memory: 128 MB (expandable to 256 MB) - RAM: 256 MB (expandable to 512 MB)
Operating Temperature Range	-40 °C to +70 °C (-40 °F to +158 °F)
Power Supply	24 V DC (19.2 V DC to 28.8 V DC), 5 W typical consumption
I/O Integration	Supports ABB I/O modules via PROFINET, PROFIBUS DP, and Ethernet/IP
Communication Ports	2 x Gigabit Ethernet (for 800xA system integration), 1 x RS-232 (configuration)
Control Functions	Supports PID, cascade control, ratio control, and custom control algorithms
Certifications	ATEX, IECEx, UL, CSA (for hazardous and industrial environments)

3. Core Features

High Processing Performance: 1.0 GHz RISC processor enables fast execution of control loops (cycle times as low as 1 ms) for real-time process responsiveness.
Seamless 800xA Integration: Natively connects to ABB's Extended Automation 800xA platform, supporting centralized monitoring, configuration, and maintenance.
Robust Cybersecurity: Complies with IEC 62443 standards, featuring role-based access control (RBAC), secure communication protocols (TLS 1.3), and firmware integrity checks.
Modular I/O Support: Works with ABB's wide range of digital/analog I/O modules (e.g., AI830, DI830) via industrial fieldbuses, enabling flexible system configuration.
Fault Tolerance: Optional redundancy (hot-swap capability) for critical applications, ensuring zero downtime in case of controller failure.
Easy Maintenance: Front-panel LED indicators for status monitoring, and remote firmware updates via 800xA to reduce on-site intervention.

4. Application Areas

The PM864AK01 is ideal for medium to large-scale industrial processes requiring precise control and high reliability. Key application sectors include:

Oil & Gas (upstream, midstream, and downstream operations)
Power Generation (thermal, hydro, and renewable energy plants)
Chemical & Petrochemical (batch and continuous processes)
Pharmaceuticals (GMP-compliant process control)
Water & Wastewater (treatment and distribution systems)
Manufacturing (automotive, food & beverage, and pulp & paper)

5. Ordering & Support

Ordering Information: Model PM864AK01 (base unit) – accessories include power supply cables (PN: 3HAC031683-001) and mounting brackets (PN: 3HAC031684-001).

ABB Support: Global technical support via ABB Ability™ Remote Services, on-site troubleshooting, and training programs for system configuration and operation. Warranty: 2 years from date of delivery.

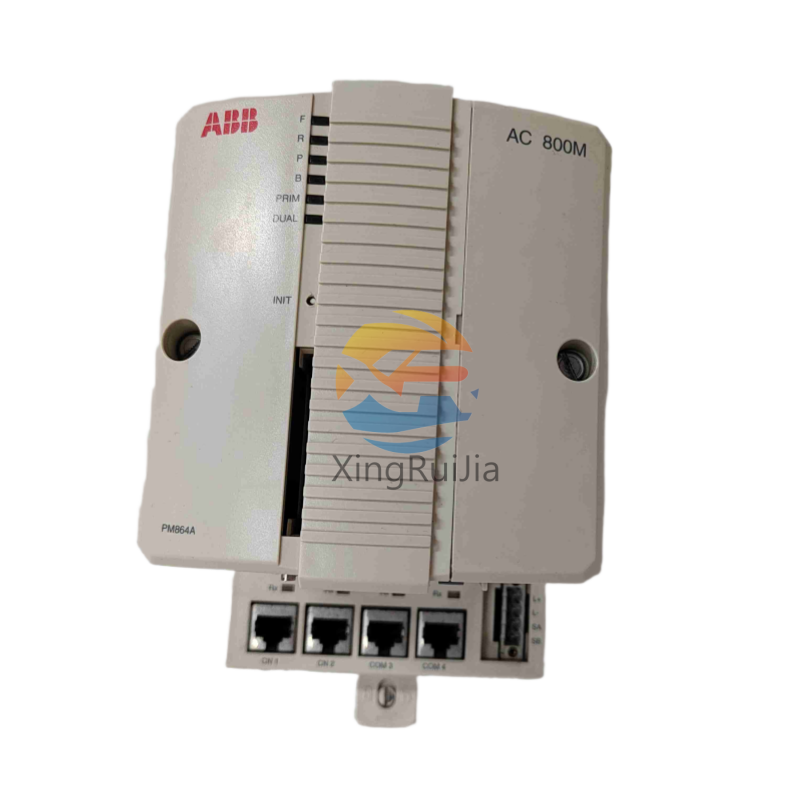

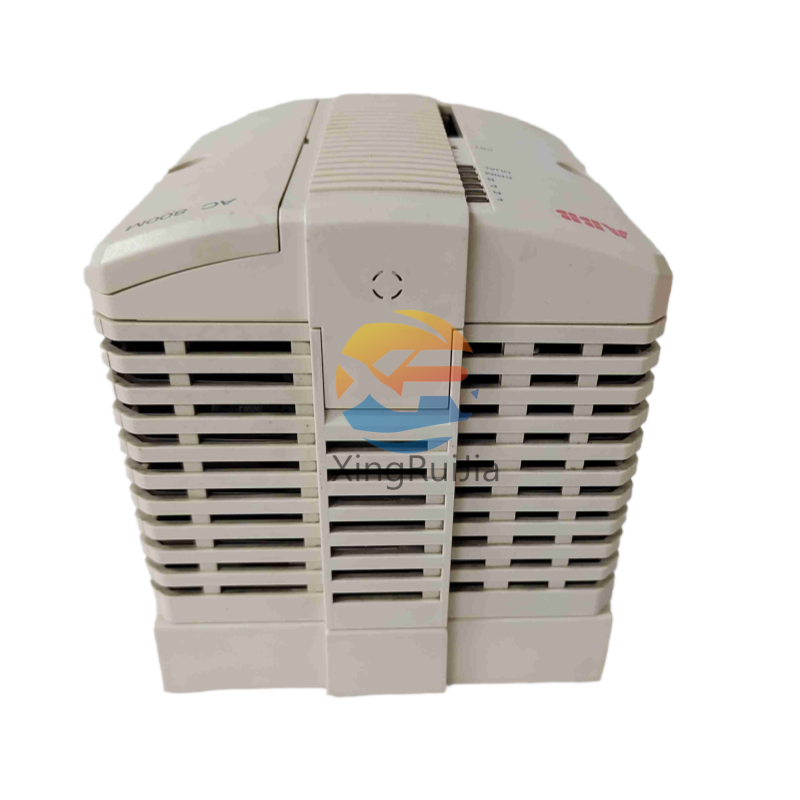

Photo Gallery
