ABB 5SDF1045H0002 | High-Power Phase Control Thyristor (PCT)

Unleash Superior Performance and Reliability in High-Voltage Applications

Take control of your most demanding power electronics systems with the ABB 5SDF1045H0002. This robust and highly reliable Phase Control Thyristor (PCT) is engineered by ABB to deliver exceptional performance in high-power conversion and switching applications. Designed for industrial environments where precision and durability are paramount, this device is the cornerstone of efficient and stable power control.

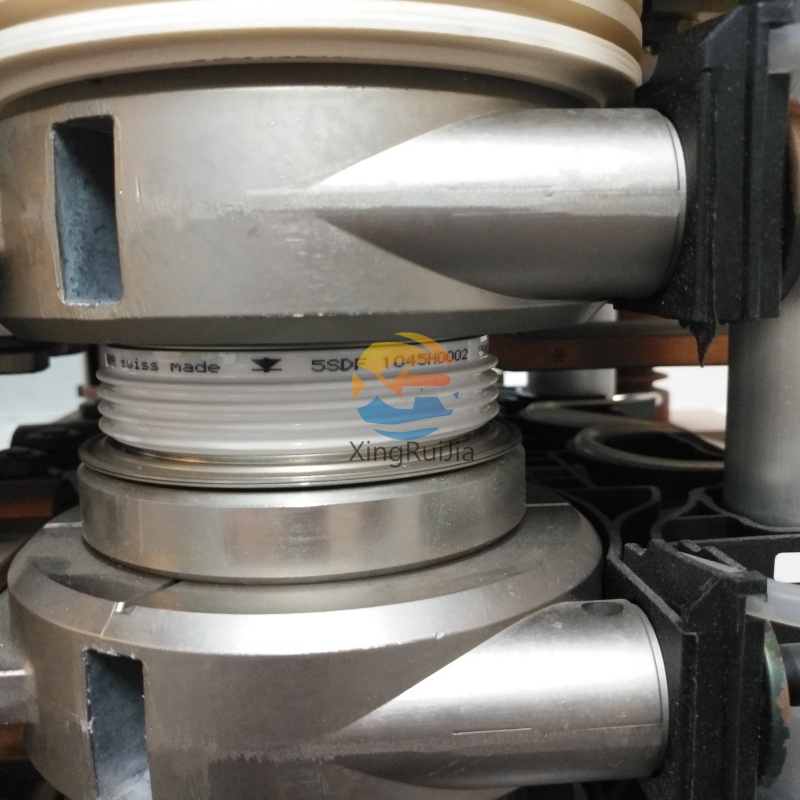

The 5SDF1045H0002 is a press-pack device that offers superior thermal management and electrical performance, making it an ideal choice for new designs and as a replacement component in existing systems.

Key Features & Benefits

• High Voltage & Current Ratings: Built to handle significant power loads with a repetitive peak off-state voltage ($V^{DRM}$) of 4500V and a high average on-state current ($I^{TAVM}$), ensuring reliability in heavy-duty applications.

• Robust Press-Pack Design: Offers excellent thermal cycling capability and mechanical ruggedness. This design ensures double-sided cooling for maximum heat dissipation, leading to a longer service life and sustained performance.

• Low On-State Voltage: Minimizes power losses and improves overall system efficiency, translating to lower operating costs and a reduced thermal footprint.

• Optimized for Industrial Use: Designed and tested to withstand the rigorous conditions of industrial applications, including superior surge current capability to handle unexpected power fluctuations.

• Proven ABB Quality: Manufactured to the highest quality standards, ensuring consistent performance and long-term reliability that you can trust in critical operations.

Technical Specifications at a Glance

Primary Applications

The ABB 5SDF1045H0002 is the perfect solution for a wide range of high-power industrial and utility applications, including:

• Industrial Motor Drives (Medium Voltage): Provides precise and reliable control for large AC and DC motor drives.

• Soft Starters: Enables smooth and controlled startup of large motors, reducing mechanical stress and electrical surges.

• Power Grid & HVDC Transmission: Essential component in AC switches, FACTS (Flexible AC Transmission Systems), and high-voltage DC converters.

• Industrial Power Supplies: Used in high-power rectifiers for applications such as welding, electrolysis, and furnace control.

• Renewable Energy: Critical for inverters and converters in wind power and solar applications.

Why Choose the ABB 5SDF1045H0002?

When your system's performance depends on every component, you need a thyristor that delivers unwavering reliability. The ABB 5SDF1045H0002 combines cutting-edge semiconductor technology with a rugged mechanical design to offer a best-in-class solution for high-power control. By choosing ABB, you are investing in decades of Swiss engineering excellence and a commitment to quality that ensures your operations run smoothly and efficiently.

Ready to enhance your power system? Contact our sales team today for pricing, availability, and technical support for the ABB 5SDF1045H0002.
