Introduction to the ABB 5SHY4045L0006 3BHB030310R0001

The ABB 5SHY4045L0006, also identified by the auxiliary order number 3BHB030310R0001, is a high-performance IGCT (Integrated Gate-Commutated Thyristor) power semiconductor. This specific module is a fundamental component within ABB's ACS6000 series of medium-voltage variable frequency drives (VFDs). As a critical element in the drive's inverter power stack, it is responsible for the precise and efficient switching of high electrical power to control large industrial motors. Understanding this component is essential for maintenance engineers, plant managers, and procurement specialists in heavy industries where drive reliability directly impacts operational continuity and productivity.

Technical Specifications and Key Features

This IGCT represents the forefront of power electronics technology, designed for extreme robustness and efficiency in medium-voltage applications.

• Full Part Number: 5SHY4045L0006

• Alternative Order Number: 3BHB030310R0001

• Component Type: Press-Pack IGCT (Integrated Gate-Commutated Thyristor)

• Key Electrical Characteristics:

  • Blocking Voltage: Typically rated for 4.5kV or 5.5kV classes, making it suitable for medium-voltage systems (e.g., 3300V, 4160V, 6900V).

  • Current Rating: Capable of handling very high continuous and surge currents, often exceeding 4000A.

  • Switching Performance: The IGCT technology offers low conduction losses and robust short-circuit capability, contributing to high system efficiency and reliability.

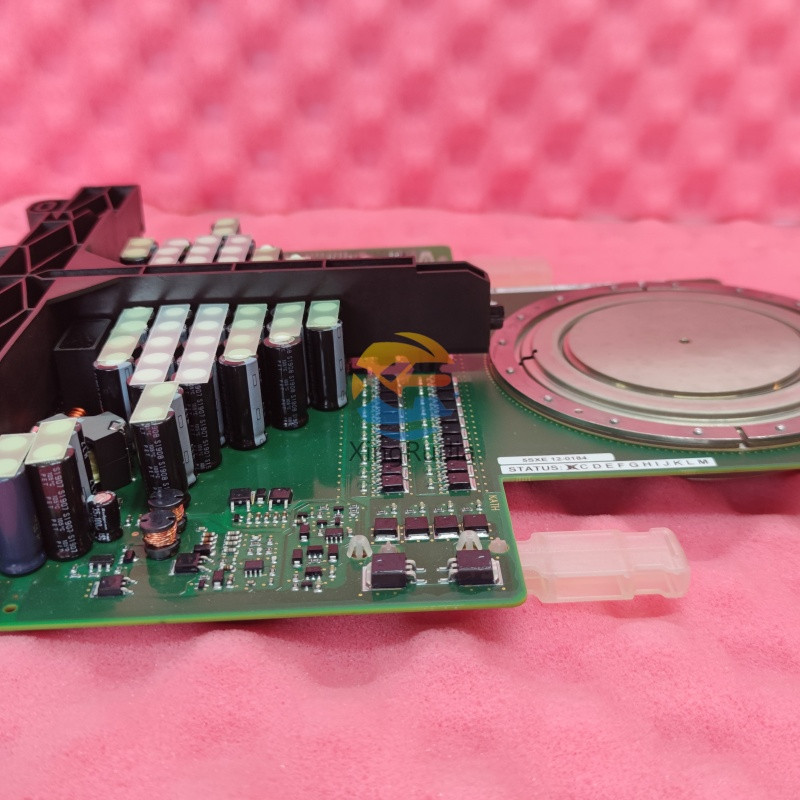

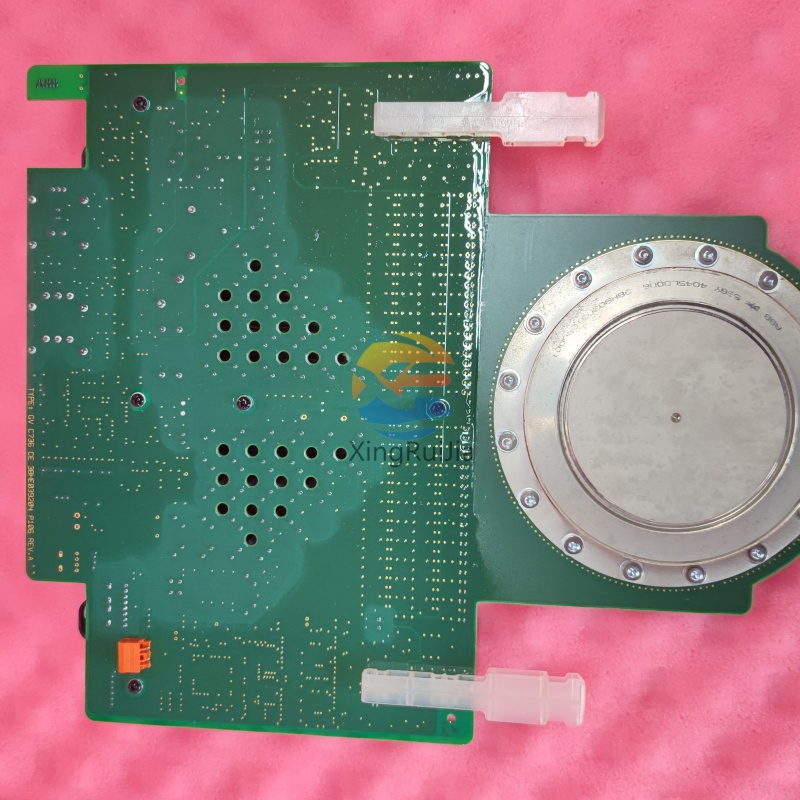

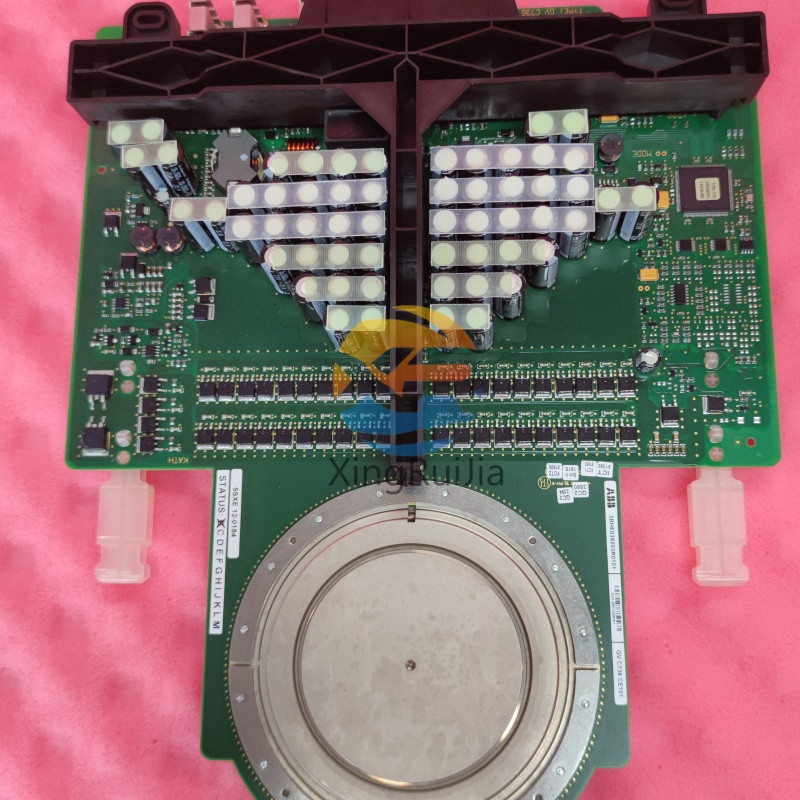

• Integrated Design: The module incorporates the thyristor and its gate driver into a single, compact, press-pack unit. This design simplifies integration, improves reliability by reducing external connections, and enhances thermal performance.

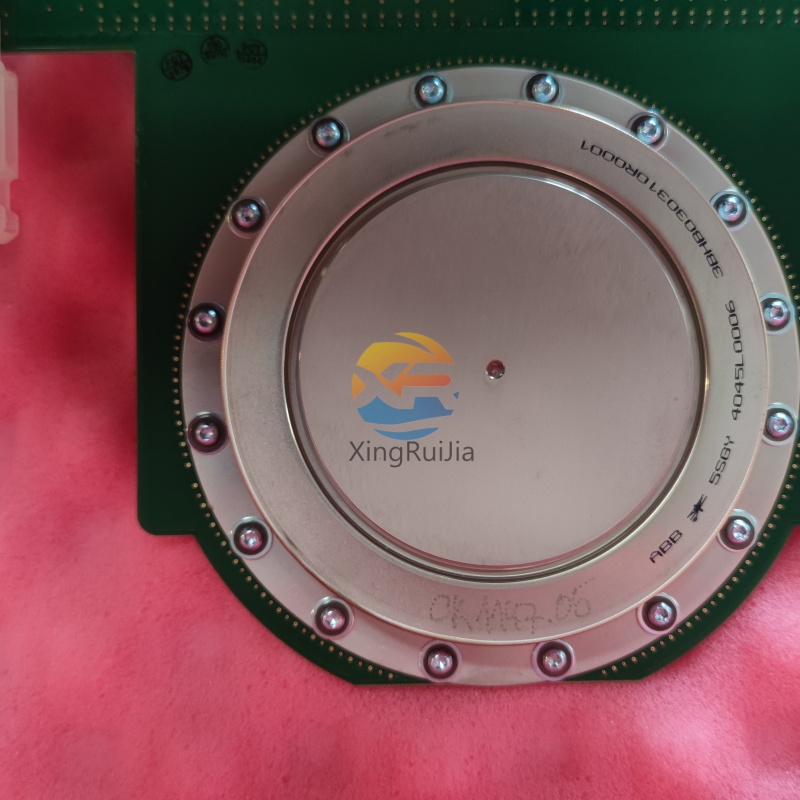

• Robust Construction: The press-pack housing is designed for direct clamping into a liquid-cooled heat sink, ensuring excellent heat dissipation under high-power conditions. It is built to withstand high mechanical pressure, electrical stress, and thermal cycling.

Primary Applications and Use Cases

The 5SHY4045L0006 module is exclusively designed for high-power, mission-critical industrial applications.

• ACS6000 Medium-Voltage Drives: This is its primary and most critical application. The ACS6000 drive is used for controlling the speed and torque of very large motors in core industries.

• Key Industries and Processes:

  • Metals: Main drives for rolling mills.

  • Mining & Minerals: Gearless mill drives (GMD) for SAG and ball mills, crushers, and high-power conveyors.

  • Cement: Driving large tube mills and crushers.

  • Energy: For large pumps, fans, and compressors in power generation and oil & gas industries (e.g., LNG liquefaction compressors).

• Function in the Drive: In the ACS6000's multi-level inverter topology, multiple IGCTs work together to synthesize a high-quality AC waveform from the DC link, enabling precise control of multi-megawatt motors.

Compatibility and Importance of Genuine ABB Parts

This component is not a generic part; it is specifically engineered for a single family of drives.

• System-Specific Design: The 5SHY4045L0006 is meticulously designed to match the electrical, mechanical, and thermal requirements of the ACS6000 drive's power stack. Using an incompatible part is not feasible and would be dangerous.

• Critical Spare Part: This part number is a high-value spare for facilities operating ACS6000 drives. A failure typically results in an immediate and costly production shutdown.

• Why Genuine ABB is Non-Negotiable:

  • Performance & Safety: Only genuine ABB IGCTs guarantee the published voltage, current, and switching characteristics. Counterfeit parts pose a severe risk of catastrophic failure, which can destroy the entire power stack and cause extended downtime.

  • Thermal Management: Authentic modules are manufactured to precise tolerances to ensure perfect contact and heat transfer to the cooling system.

  • System Warranty & Support: Using non-OEM parts may void drive warranties and invalidate support agreements with ABB.

  • Long-Term Reliability: Genuine parts are certified for the expected lifecycle of the drive, whereas counterfeits are a major operational risk.

Identifying Need for Replacement and Sourcing

Failure of an IGCT is a significant event that requires expert handling.

• Symptoms of Failure: A failed IGCT will cause a major drive fault trip. Common alarms include "Short Circuit," "Earth Fault," "Asic Error," or "Fuse Failure" within the drive unit. Sophisticated drive diagnostics can often pinpoint the faulty power component.

• Professional Requirement: Replacement is a complex task for highly trained, certified technicians. It involves safely discharging the DC link capacitors, dismantling the power stack, replacing the module with precise clamping force, and thorough testing.

• Sourcing: The 5SHY4045L0006 must be procured through official ABB sales channels or authorized ABB distributors. Provide the drive's type code and serial number to the distributor to ensure part number compatibility.


Conclusion

The ABB 5SHY4045L0006 3BHB030310R0001 is more than a component; it is a precision-engineered key to unlocking the power and reliability of the ACS6000 drive. Its performance is integral to some of the most demanding industrial applications in the world. For operators of these systems, prioritizing the procurement of genuine ABB parts and expert service is not just a maintenance best practice—it is a critical investment in operational safety, asset protection, and production continuity.
