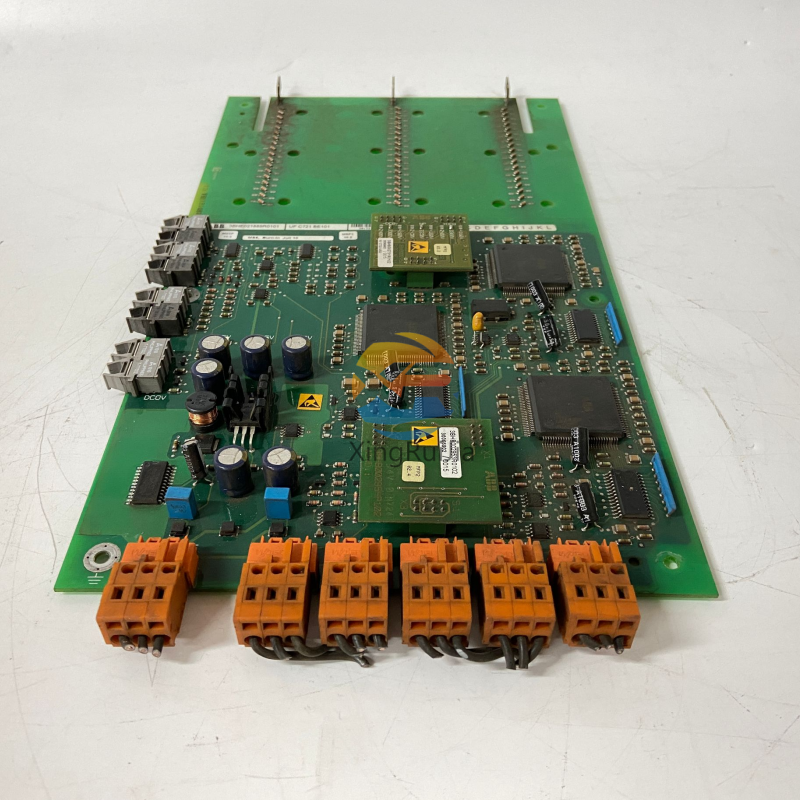

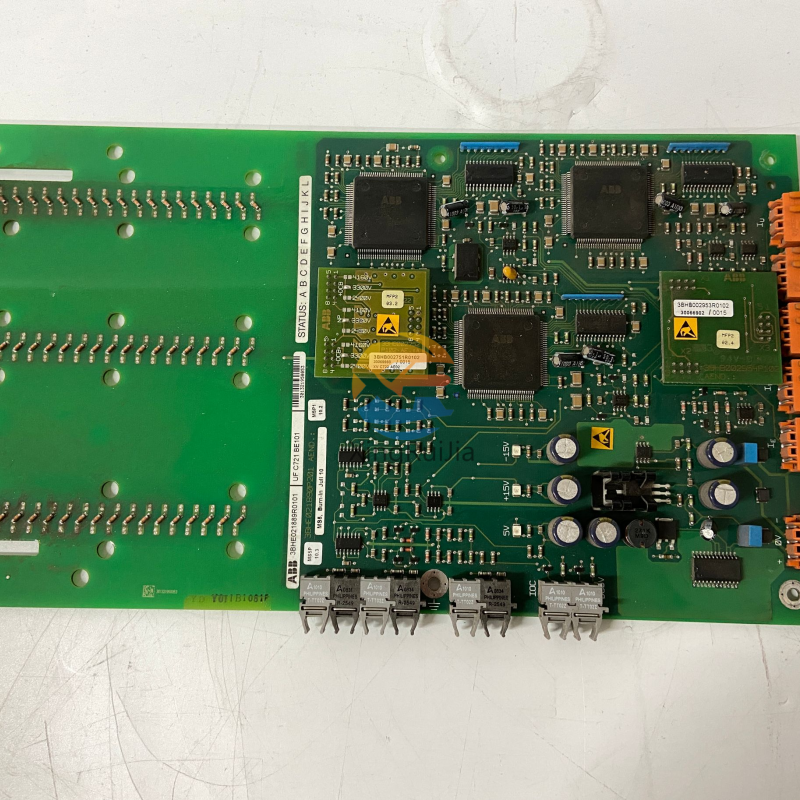

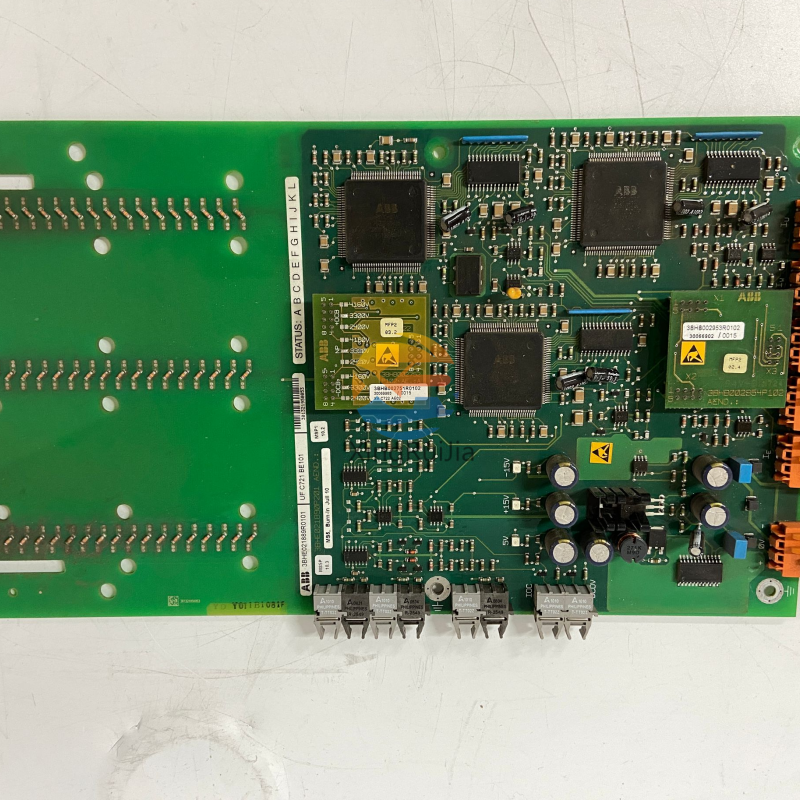

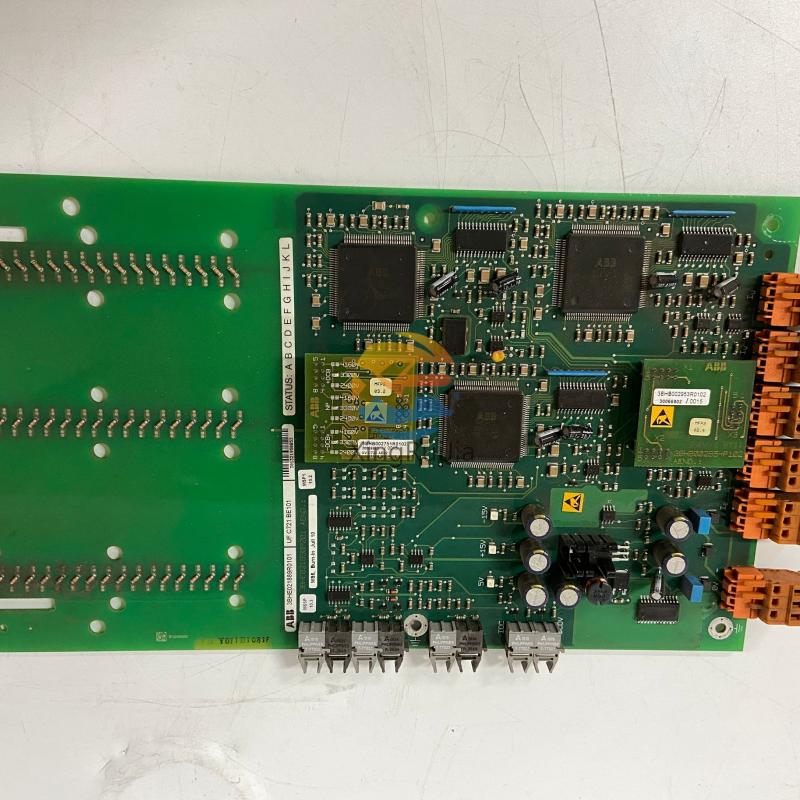

ABB UFC721BE101 Controller Module | P/N: 3BHE021889R0101

[Download Data Sheet (PDF)] [Request a Quote] [Check Availability]

The ABB UFC721BE101 (Order Code: 3BHE021889R0101) is a high-performance Universal Field Controller (UFC) designed for use with ABB's S800 I/O system. This versatile module acts as a remote and intelligent controller, capable of executing complex logic and process control tasks. It is a foundational component within ABB's System 800xA and Compact Control Builder (CCB) environments, providing a flexible and powerful solution for distributed control applications.

The UFC721BE101 is engineered for reliability in demanding industrial environments, offering seamless integration and robust performance for a wide range of automation and process control challenges.

Key Features & Benefits:

• Distributed Intelligence: Executes control logic locally at the I/O level, reducing load on central controllers and improving system responsiveness.

• S800 I/O Integration: Directly interfaces with the extensive range of ABB S800 I/O modules (analog, digital, specialty), creating a compact and powerful remote station.

• Dual Network Connectivity: Features both a MasterBus 300 (MB300) network port and a Ethernet port for flexible integration into various network architectures.

• Local Logic Execution: Capable of running PID loops, sequence logic, and other control functions independently.

• System 800xA & CCB Compatible: Fully configurable within ABB's powerful Control Builder M engineering tool, fitting into both large DCS and smaller standalone system architectures.

• Rugged Industrial Design: Built to operate reliably in harsh conditions with wide temperature ranges and high immunity to noise and vibration.

Technical Specifications: ABB UFC721BE101 (3BHE021889R0101)

For complete technical details, environmental ratings, and configuration guidelines, please consult the official ABB datasheet.

Common Applications & Industries

The ABB UFC721BE101 controller is deployed in industries requiring robust, distributed control:

• Oil & Gas: Remote control of wellhead platforms, valve stations, and pipeline monitoring.

• Chemical & Pharmaceutical: Distributed batch process control and safety interlocks.

• Power Generation: Control of auxiliary systems (BOP - Balance of Plant).

• Water & Wastewater Treatment: Remote pump station control and monitoring.

• Marine & Offshore: Machinery control and automation on vessels.

Frequently Asked Questions (FAQs)

Q: What is the difference between a UFC and a main controller like the AC 800M?
A: A Universal Field Controller (UFC) like the UFC721BE101 is designed for distributed control at the I/O level. It handles local logic to offload the central AC 800M controller, which manages plant-wide coordination. The UFC is often a more cost-effective solution for remote control applications.

Q: What is the "MB300" communication port used for?
A: MasterBus 300 (MB300) is a proprietary ABB serial communication protocol used to connect the UFC to a central controller (like an AC 800M) or to other devices in a legacy ABB system.

Q: Can the UFC721BE101 operate standalone?
A: Yes. One of its key features is the ability to operate as a standalone controller using the Compact Control Builder (CCB) software, making it ideal for smaller, independent systems without a full DCS.

Q: What software is required to configure this module?
A: It is configured using ABB's Control Builder M software, which is part of the System 800xA DCS or available as a standalone package (Compact Control Builder).

Q: Is this module new or refurbished?
A: We supply both new, genuine ABB products with full warranty and expertly refurbished units that have been tested to meet original specifications. The product condition will be clearly stated with each offering.

Why Source Your ABB Components from Us?

• Authorized & Trusted Supplier: We guarantee 100% genuine ABB products with full traceability and support.

• Technical Expertise: Our team understands complex ABB system architectures and can help verify compatibility for your specific application.

• Global Logistics: We ship to system integrators and end-users worldwide with reliable partners like DHL, FedEx, and UPS.

• Complete System Support: We can supply not just the controller, but the entire S800 I/O ecosystem, including baseplates, power supplies, and all I/O module types.
