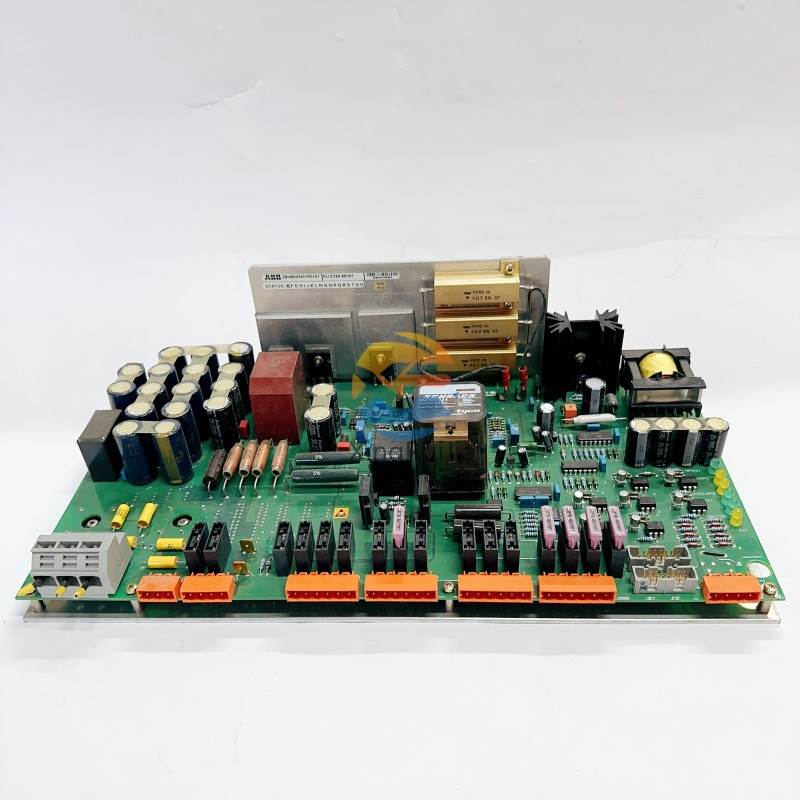

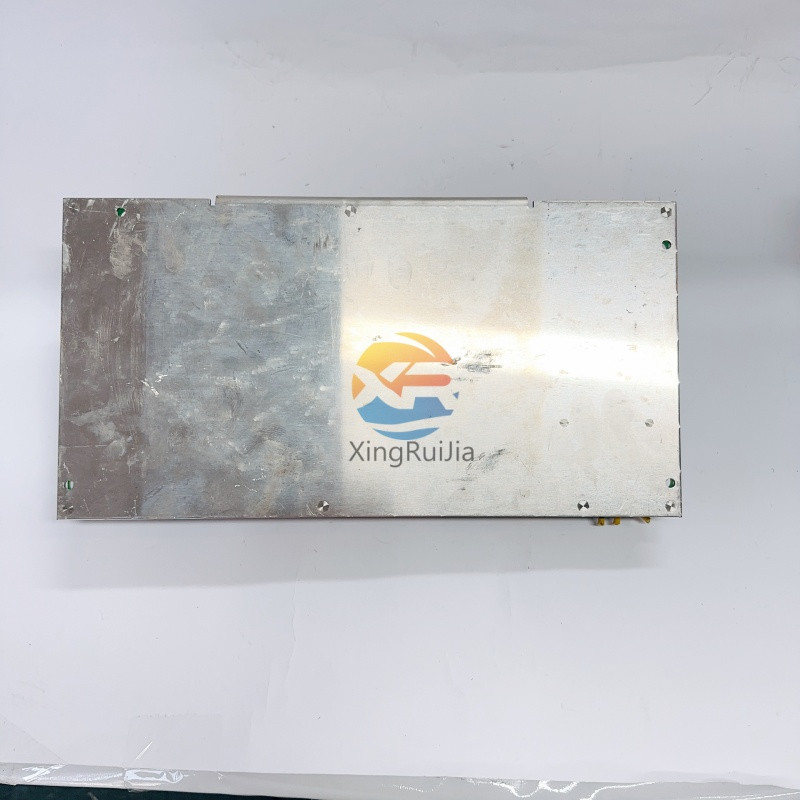

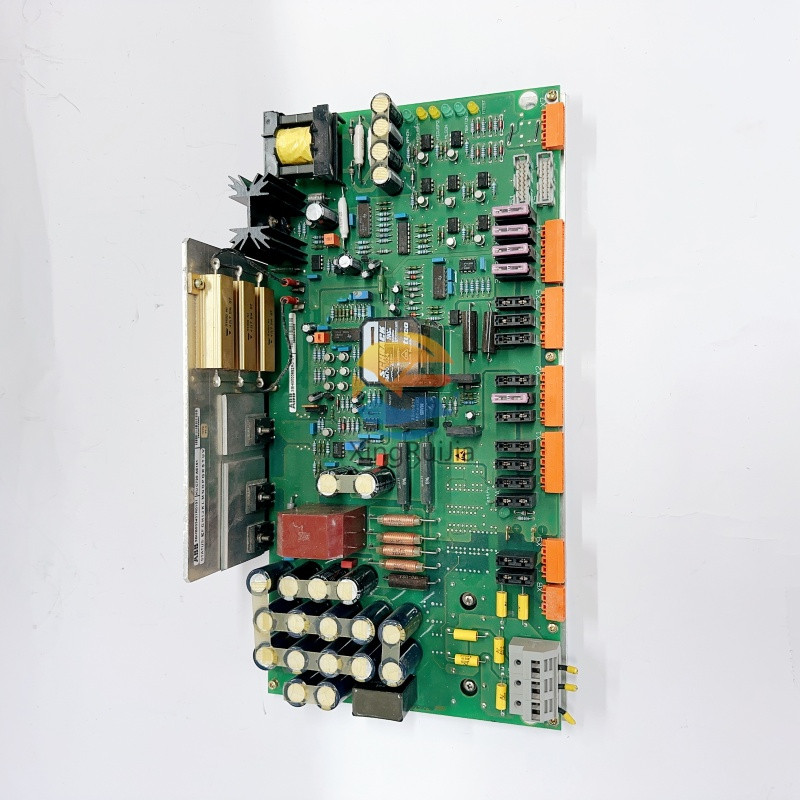

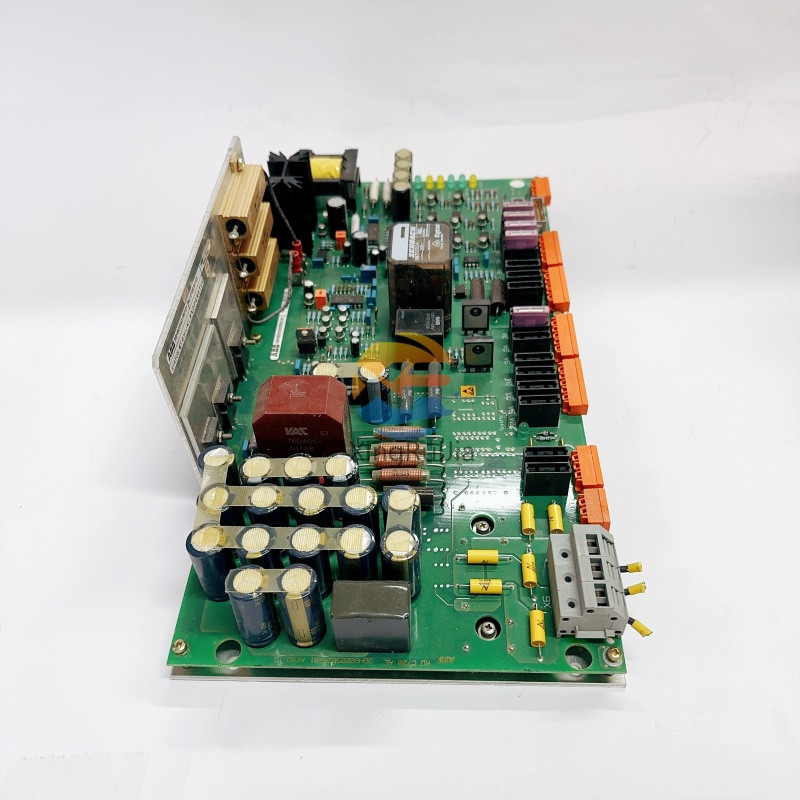

ABB KUC720AE01 3BHB000652R0001 & 3BHB003431R0001 | S800 I/O to PLC Communication Gateway

The ABB KUC720AE01, uniquely identified by the article numbers 3BHB000652R0001 and 3BHB003431R0001, is a fundamental communication interface module within ABB's highly versatile S800 I/O system. This module serves a singular, critical purpose: to act as a robust and reliable gateway, connecting the extensive range of S800 field I/O modules to a higher-level programmable logic controller (PLC) or process control system via a PROFIBUS-DP network.

In the architecture of modern industrial automation, the ability to seamlessly integrate distributed I/O with a central control system is non-negotiable. The KUC720AE01 fulfills this role with exceptional efficiency, allowing powerful controllers like ABB's AC 800M or even third-party PLCs to read inputs from and send outputs to a remote bank of S800 I/O modules over a long-distance, industrial-grade fieldbus. For industries reliant on the precision and reliability of ABB's S800 I/O for critical process data acquisition, the KUC720AE01 3BHB000652R0001 is the indispensable link that ensures data integrity and control command execution.

This comprehensive guide delves into the technical specifications, system integration role, and application scenarios of this key communication module, providing all necessary information for sourcing, integration, and maintenance.

Primary Function and System Integration Role

The KUC720AE01 is more than just a simple adapter; it is an intelligent communication controller. Its core functions include:

• PROFIBUS-DP Slave Interface: The module operates as a slave device on a PROFIBUS-DP (Decentralized Periphery) network. It responds to commands from the master controller (e.g., a PLC), receiving output data and sending back input data from the connected S800 I/O modules.

• S800 I/O Branch Manager: It acts as the master for a local branch of S800 I/O modules. It manages the power-up sequence, continuously polls the I/O modules for their data, and handles the cyclic data exchange between the I/O and the PROFIBUS network.

• Protocol Conversion: The module seamlessly translates the internal communication protocol of the S800 I/O system into the standard PROFIBUS-DP protocol (and vice-versa), making the entire S800 I/O station appear as a single, unified node on the PROFIBUS network.

• Modular Configuration: It is mounted in the dedicated communication slot of an S800 I/O station, such as the TU847 or TU849 base unit. Its configuration, including the PROFIBUS node address, is set physically via DIP switches on the front of the module.

• Advanced Diagnostics: It provides comprehensive diagnostic capabilities, reporting module health, network status, and I/O branch failures back to the master controller over the PROFIBUS, enabling rapid fault identification and resolution.



Key Technical Specifications

The following table provides a detailed breakdown of the technical attributes of the ABB KUC720AE01.

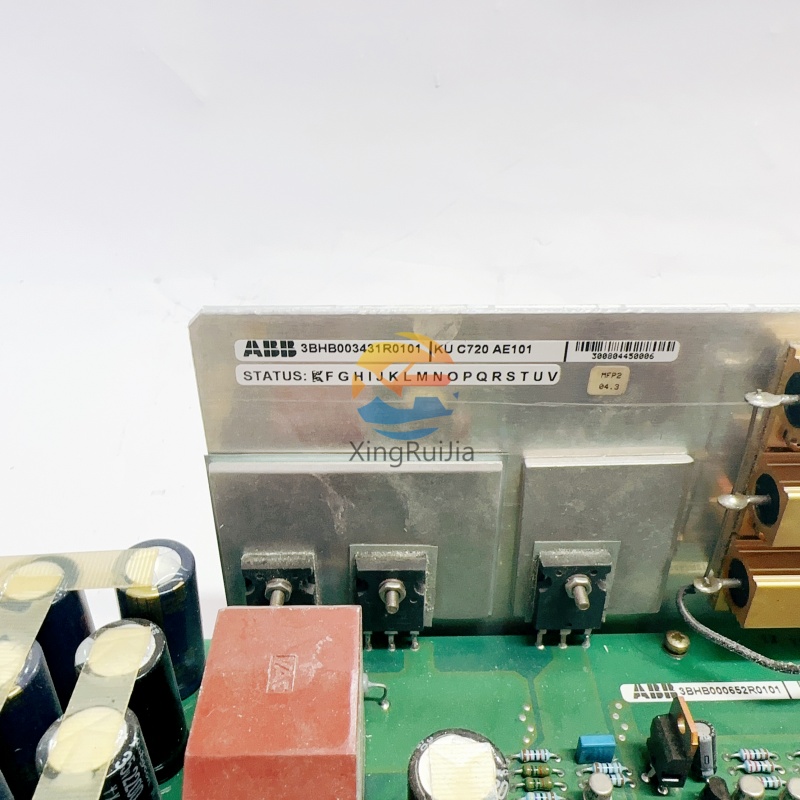

Understanding the Article Numbers: 3BHB000652R0001 vs. 3BHB003431R0001

A common point of confusion is the existence of two distinct article numbers for what appears to be the same KUC720AE01 module.

• 3BHB000652R0001: This is the standard, base article number for the KUC720AE01 module itself.

• 3BHB003431R0001: This article number often refers to a specific kit or a later product revision. It may include the KUC720AE01 module along with specific firmware, documentation, or packaging. In many practical contexts, they are functionally equivalent and interchangeable, representing the same end product.

Critical Recommendation: When procuring, it is essential to verify the exact article number required by your Bill of Materials (BOM) or spare parts list. However, specifying KUC720AE01 as the model will typically cover both article numbers, and a knowledgeable supplier will confirm the correct cross-reference.

Typical Applications and Industries Served

The KUC720AE01 module is deployed in a vast array of industries where distributed control and high data integrity are required.

• Power Generation: In both conventional and renewable power plants, it connects S800 I/O banks monitoring turbine auxiliaries, boiler controls, and balance-of-plant equipment to the main DCS over a robust PROFIBUS network.

• Oil & Gas: Used on offshore platforms and in refineries for distributed control applications, where I/O points are spread across a large area and need to be linked back to a central safety system.

• Water and Wastewater Treatment: Ideal for remote pump stations and treatment basins, where the S800 I/O handles local sensor/actuator signals and the KUC720AE01 transmits the data over long distances to the main control room.

• Manufacturing and Automotive: In large factory automation systems, it allows a central PLC to control and monitor remote processes like paint shops, assembly lines, or hydraulic power units via S800 I/O.

• Pulp and Paper: Connects I/O from various sections of a paper machine (e.g., drive controls, consistency measurement) to the overarching control system.

System Integration and Compatibility

A typical integration diagram illustrates the module's role:

1. Master Controller (e.g., AC 800M PLC, Siemens S7 PLC): The PROFIBUS-DP Master.

2. PROFIBUS-DP Network: The physical RS-485 serial network connecting master and slaves.

3. ABB KUC720AE01 3BHB000652R0001: The PROFIBUS Slave and S800 I/O Master.

4. S800 I/O Branch: A local serial bus.

5. S800 I/O Modules (AI, AO, DI, DO): Interface directly with field devices (sensors, valves, motors).

Why Source a Genuine ABB KUC720AE01?

The integrity of your entire control loop depends on the reliability of this communication gateway.

• Guaranteed Protocol Compliance: A genuine ABB module is certified to comply with PROFIBUS-DP standards, ensuring stable and error-free communication with your master controller.

• Hardware Reliability: Built with industrial-grade components, it ensures long-term operation in harsh environments, preventing costly network dropouts and data corruption.

• Seamless S800 I/O Integration: Guaranteed compatibility with all S800 I/O modules and base units, ensuring correct power-up, configuration, and data mapping.

• Accurate Diagnostics: Provides reliable diagnostic information that is crucial for predictive maintenance and minimizing system downtime.

• Supply Chain Assurance: Sourcing from a reputable supplier guarantees you receive a genuine, non-counterfeit product with full traceability.

Frequently Asked Questions (FAQ)

Q1: What is the difference between the KUC720AE and the KUC720AE01?
A1: The "01" suffix typically denotes a specific hardware or firmware revision. The KUC720AE01 is the standard and most common version, and it supersedes the original KUC720AE. For all practical purposes of sourcing a spare part, the KUC720AE01 is the correct model.

Q2: Can I use this module with a non-ABB PLC, like a Siemens SIMATIC S7?
A2: Yes, absolutely. This is one of its key advantages. The KUC720AE01 acts as a standard PROFIBUS-DP slave and can be easily integrated into any PROFIBUS-DP master system, including those from Siemens, Rockwell, or other vendors. The GSD file (hardware configuration file) for the KUC720AE01 is provided by ABB to facilitate this integration.

Q3: How do I set the PROFIBUS address?
A3: The PROFIBUS node address is set manually using the 8-bit DIP switch located on the front face of the KUC720AE01 module. The address is set in binary format.

Q4: Are both article numbers 3BHB000652R0001 and 3BHB003431R0001 the same?
A4: While they both refer to the KUC720AE01 module, they may represent different product batches or kits. For replacement purposes, they are functionally equivalent, but you should always match the article number specified in your technical documentation to be safe.

Call to Action

Secure the communication backbone of your S800 I/O system with a guaranteed genuine ABB KUC720AE01 module. Ensure the reliability and availability of your process data.

Contact us today for a competitive quotation, current stock availability, and technical data sheets. Our specialists are ready to assist you in sourcing the correct component for your operational needs.
